MAXWAVE SMART YAG JEWELRY LASER WELDER
Smart YAG Jewelry Laser Welder for Permanent Jewelry & Precision Repair
Tiny jewelry parts leave little room for error. See the weld clearly, position it precisely, and adjust settings quickly with one smart YAG desktop system.
Built for rings, chains, settings and everyday jewelry repair.
• Clearer Viewing: CCD + HD microscope
• Precise Positioning: Red-light targeting
• Flexible Welding: 0.1–3 mm adjustable spot
• AI-Powered Control: Voice control · Smart assistance · Mobile APP
• Stable Operation: Built-in water cooling
Built for Cleaner, Simpler Everyday Cleaning
01
See Clearly
CCD + microscope viewing for tiny weld areas.
02
Position Precisely
Red-light targeting before the laser pulse.
03
Repeat Faster
Save and recall settings for similar repair jobs.
What Can You Weld With It?
WELDING TASK
COMMON PARTS
SUITABLE?
MAIN FACTORS
Ring Repair
Joints · Resizing areas · Cracks
✓ Yes
Material · Thickness · Joint size
Chain Welding
Chain links · Clasps · Connectors
✓ Yes
Material · Link size · Heat sensitivity
Prong Repair
Prongs · Settings · Stone-set areas
✓ Yes
Spot size · Weld position · Nearby stones
Porosity / Hole Repair
Porosity · Small holes · Surface defects
✓ Yes
Hole depth · Material · Fill amount
Small Metal Parts
Eyewear · Watch parts · Small hardware
✓ Yes
Material · Thickness · Part geometry
Real Cleaning Results
Actual cleaning examples showing the contaminant, surface and power used for each job.

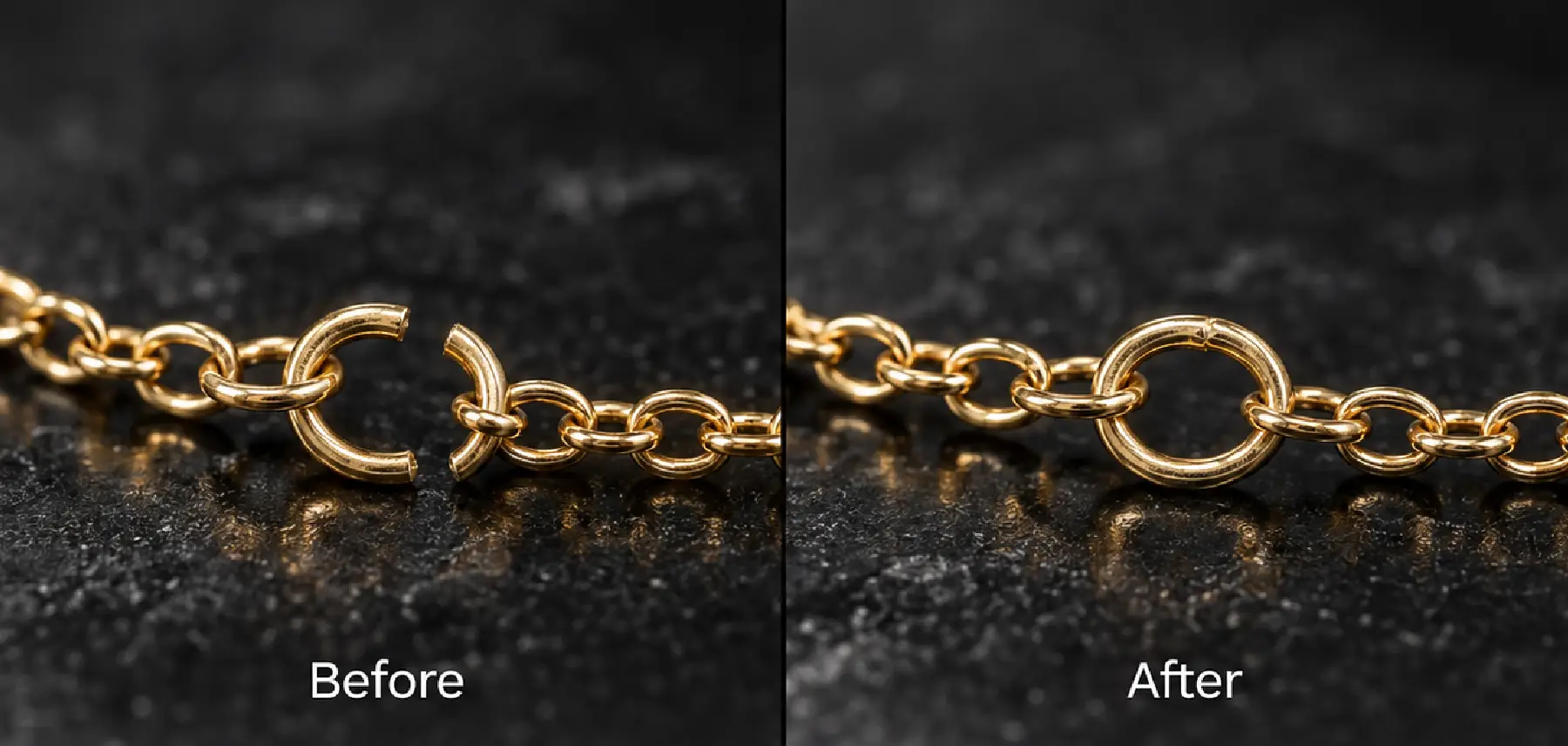

SAMPLE 01
Permanent Jewelry Welding
FINE CHAIN · LOOP CLOSURE · DAILY SHOP WORK
SAMPLE 02
Bracelet & Clasp Repair
BRACELET · CLASP · JOINT REPAIR

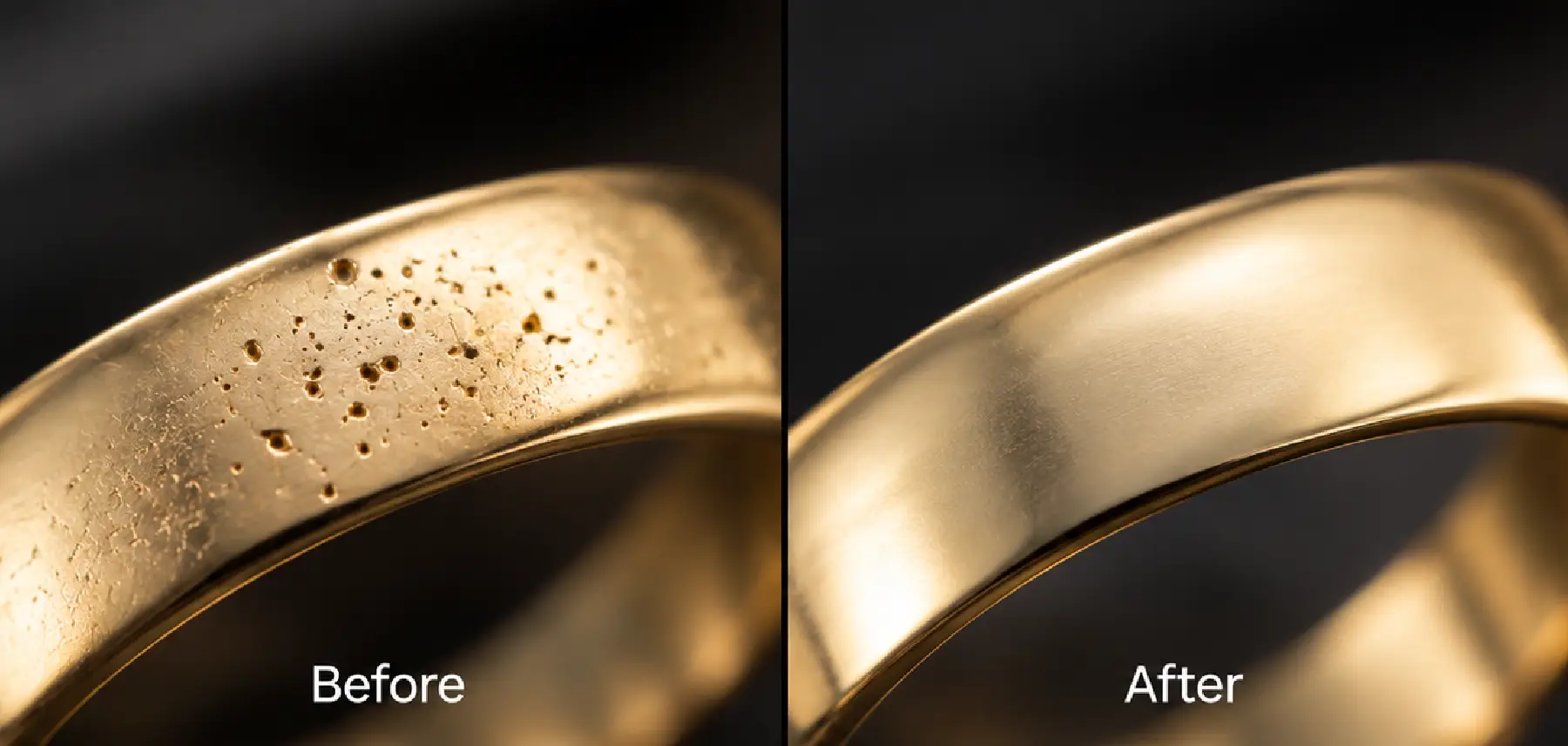

SAMPLE 03
Porosity & Hole Filling
GOLD / SILVER · SMALL HOLES · SURFACE REPAIR
SAMPLE 04
Pendant & Small Part Assembly
PENDANT · DECORATIVE PARTS · SPOT WELDING
Where This Laser Cleaner Fits
Jewelry Repair Shops
Permanent Jewelry Studios
Goldsmith & Custom Jewelry Workshops

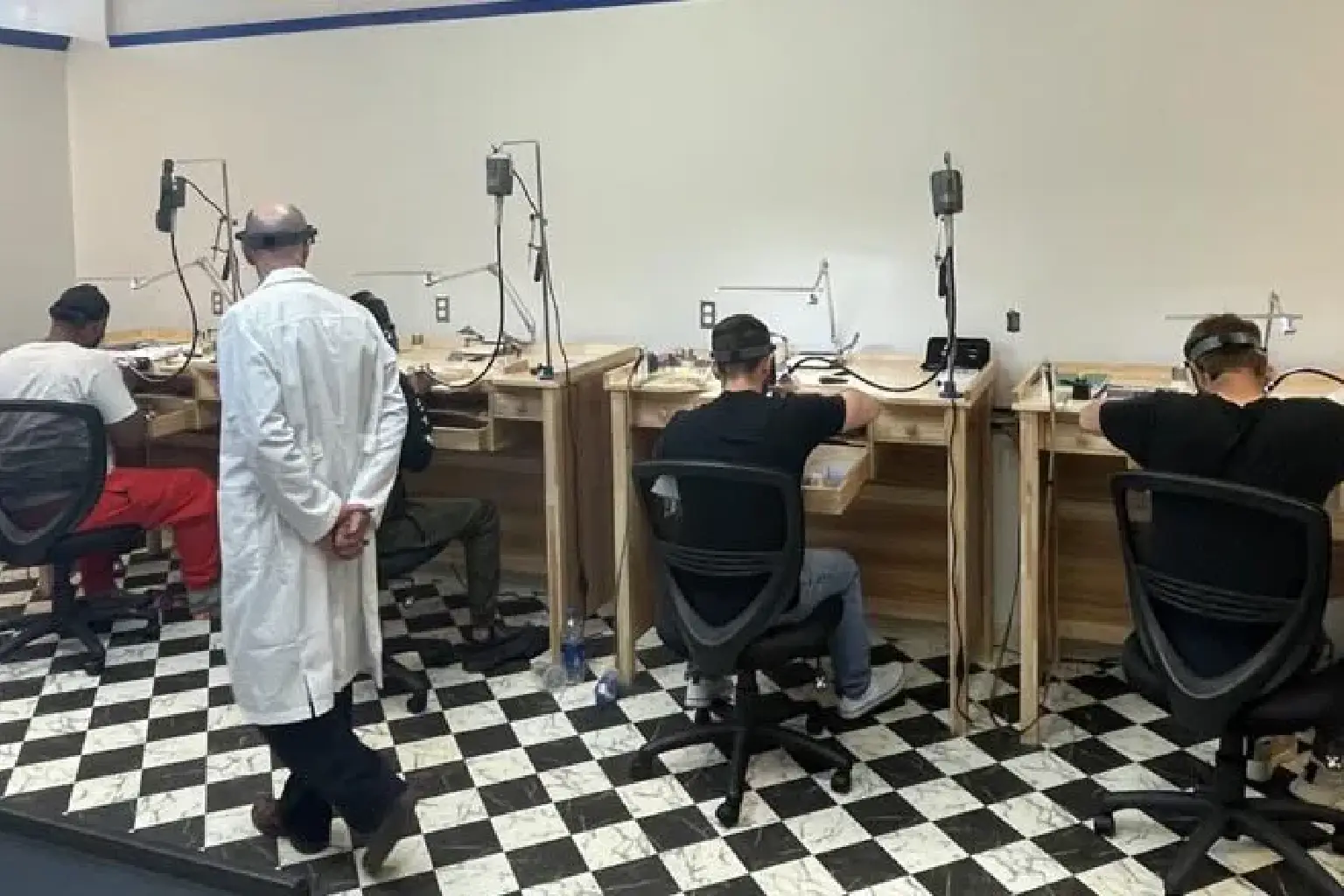

Jewelry Schools & Training Centers
SMART YAG ADVANTAGES
What Makes This MaxWave YAG Jewelry Welder Different
From visual control and saved welding programs to flexible YAG settings and AI-assisted operation, it is designed to make daily jewelry repair easier to see, faster to repeat and more adaptable to different jobs.

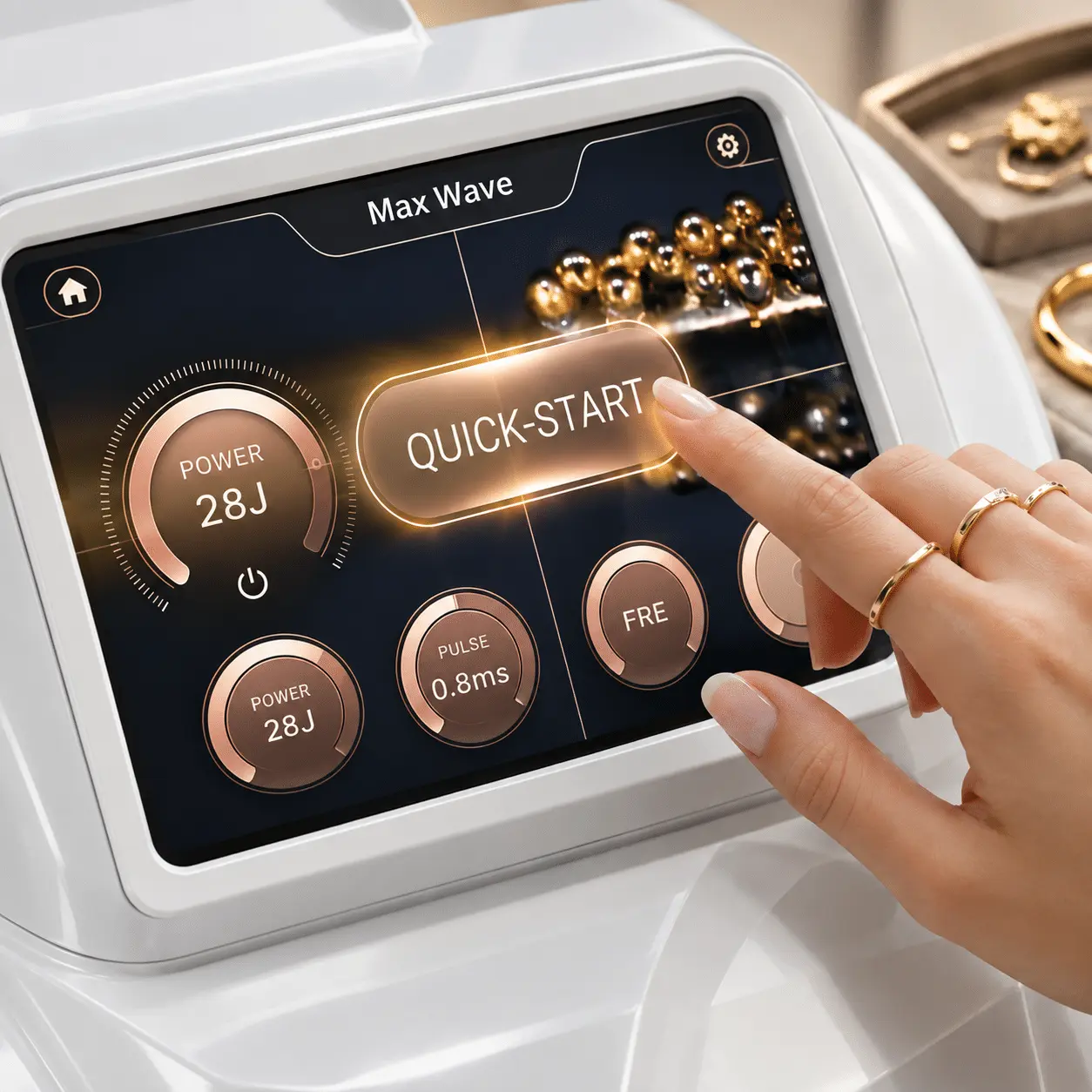

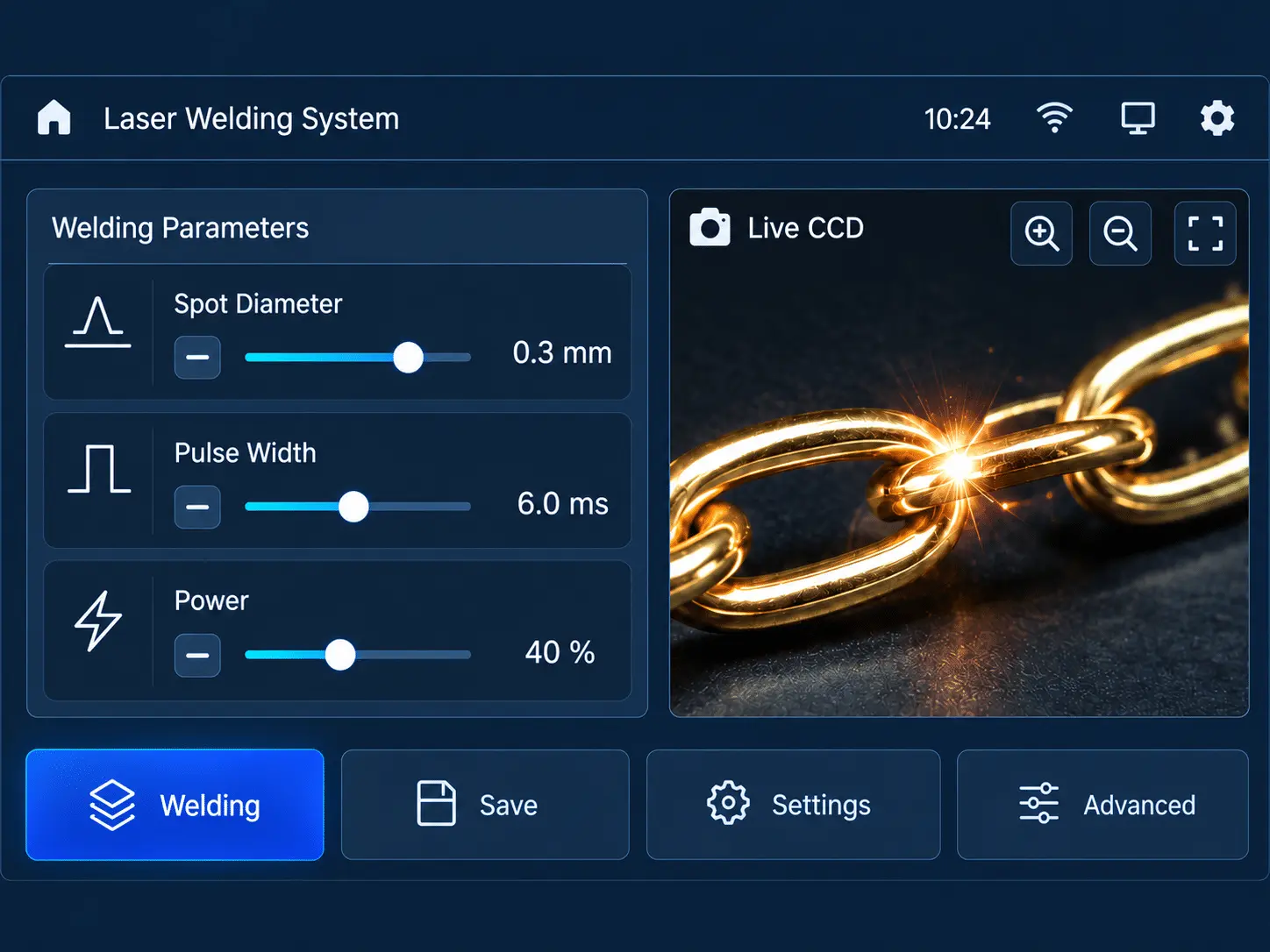

10.8″ of Full Welding Control
We combined live CCD viewing and welding parameters on one 10.8″ touchscreen, helping operators see the repair area clearly and adjust settings without constantly switching controls.
DISPLAY 10.8″ TFT
RESOLUTION 1280 × 800
VIEWING Live CCD

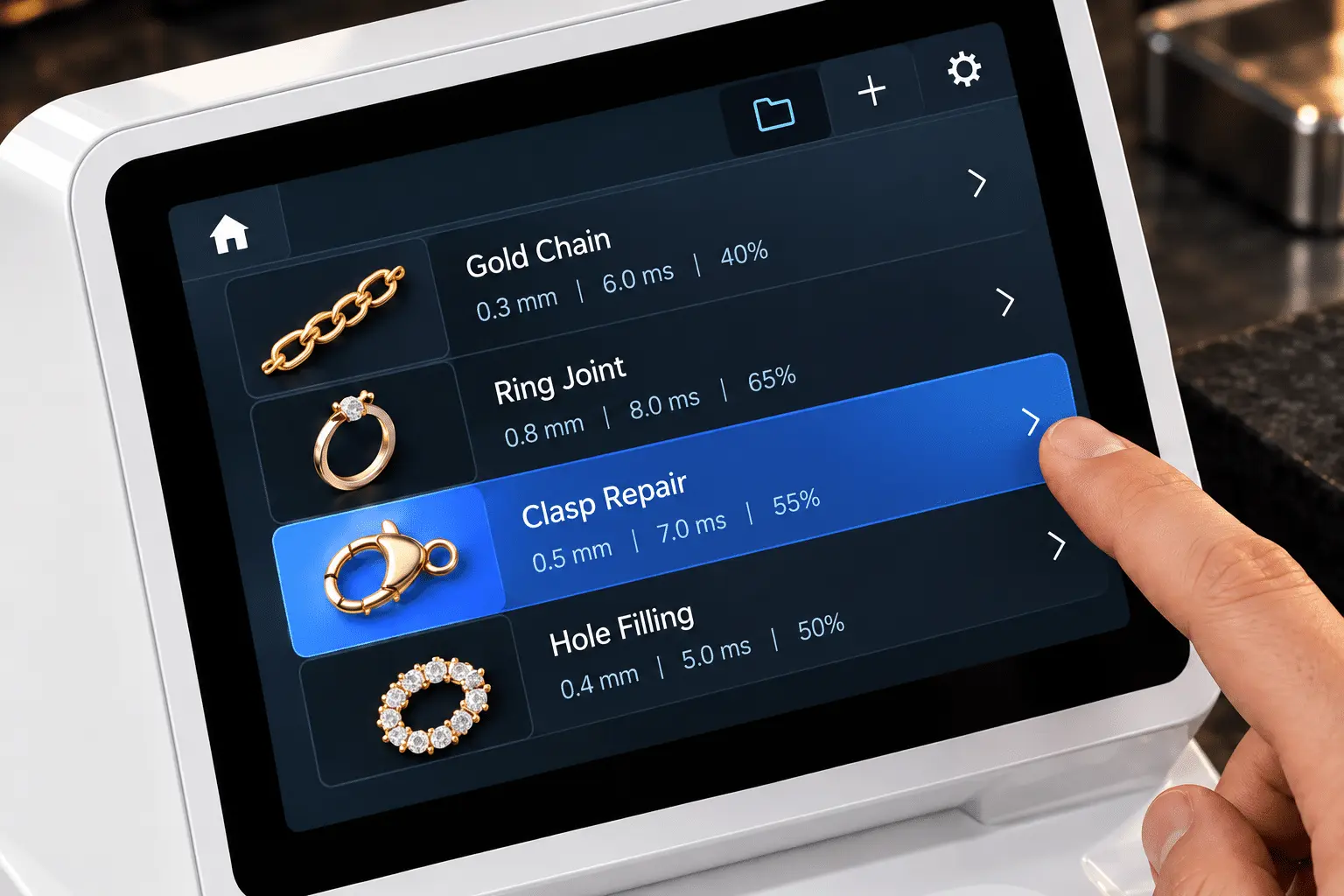

Good Settings Shouldn’t Be Found Twice
PARAMETERS Save & Recall
CONTROL Power · Pulse Width · Frequency · Spot
WORKFLOW Faster Repeat Jobs
ine Chain or Hole Filling—Tune the YAG to Match
PULSE WIDTH 0.1–10 ms
FREQUENCY 0–15 Hz
SPOT SIZE 0.1–3 mm

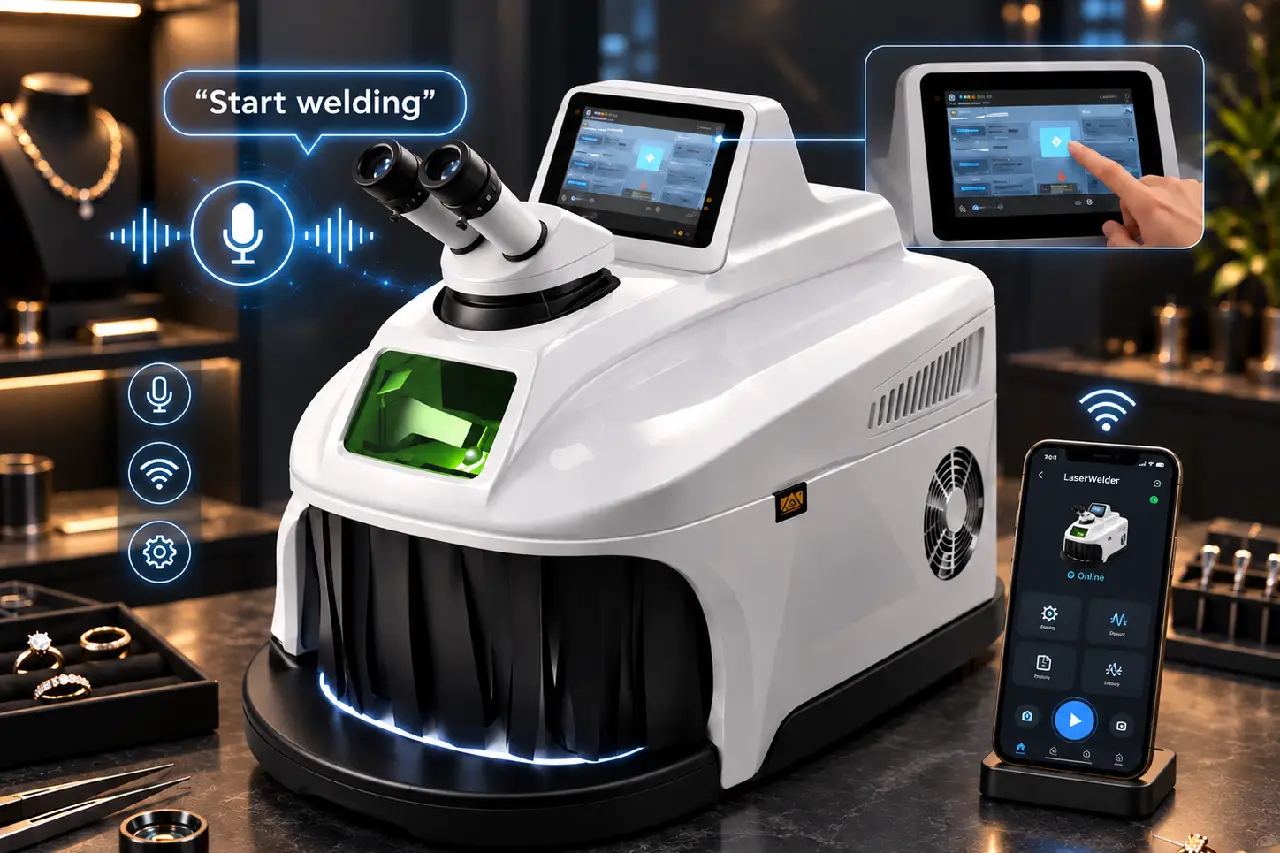

From Touchscreen to Voice to APP
CONTROL Touch · Voice · APP
CONNECTIVITY Wi-Fi + Bluetooth
SYSTEM AI Access · OTA Upgrade
YAG WELDING CONTROL
One YAG System, Tuned for Different Jewelry Jobs
Different surfaces need different scan paths. Dual-axis control and multiple cleaning patterns help operators adapt coverage to flat, curved, detailed and localized areas for more even, controlled cleaning.
01 · PULSE CONTROL
Shape the Energy for the Repair
Adjust pulse width from 0.1–10 ms to control how long laser energy is delivered to the weld. Shorter pulses suit smaller, more delicate joints, while longer pulses give more energy for filling and heavier repair work.
PULSE WIDTH
0.1–10 ms
02 · SPOT CONTROL
Match the Spot to the Job
Adjust the welding spot from 0.1–3 mm to better fit the repair area. Use a smaller spot for fine chain links and narrow joints, or a larger spot when filling porosity and wider surface defect
SPOT SIZE
0.1–3 mm
03 · FREQUENCY CONTROL
Set the Welding Pace
Adjust frequency from 0–15 Hz to control how quickly pulses are repeated during welding. This gives operators more flexibility when moving between delicate repair work, repeated spot welding and filling tasks.
FREQUENCY
0–15 Hz
JEWELRY WELDING COMPARISON
YAG vs QCW vs Traditional Welding
A practical comparison of repair flexibility, precision, heat input and daily operation.
Traditional Jewelry Welding
More Heat Around the Joint
Torch and soldering methods heat a wider area around the repair.
More Operator-Dependent
Fine joints require more manual control and operator experience.
More Finishing Steps
Solder, flux and post-weld cleanup can add extra work.
YAG Jewelry Laser Welding
Flexible for Everyday Repair
Adjustable pulse, frequency and spot size suit a wide range of jewelry repair tasks.
Filling & General Repair
Ideal for rings, clasps and porosity repair.
Balanced & Versatile
Flexible control for different materials and joints.
QCW Jewelry Laser Welding
Finer Spot, Lower Heat
High-peak pulses concentrate energy into a smaller weld area.
Better for Delicate Work
Ideal for fine joints, prongs and thin jewelry parts.
Low-Maintenance Fiber
Air cooling and long laser life reduce routine maintenance.
Choose the Right YAG Power for Your Jewelry Work
Choose by material, part thickness, joint size and repair type. Higher wattage is better suited to thicker sections, larger joints and filling work, while lower wattage gives more control for lighter jewelry repairs.
POWE
BEST FOR
TYPICAL JEWELRY JOBS
WHY CHOOSE IT
60W
Fine, light jewelry work
Thin gold parts · Small joints · Light spot welding
More control for delicate, low-energy repairs
100W
Light everyday repair
Fine rings · Small silver parts · Small connectors
A practical step up for common light repair jobs
150W
General jewelry repair
Rings · Chains · Clasps · Gold / Silver / Platinum
Balanced power for a wide range of daily repairs
200W
Heavier repair & filling
Thick rings · Bracelet joints · Porosity · Small hole filling
More energy for thicker sections and deeper repair work
230W+
Higher-demand desktop YAG work
Larger joints · Repeated filling · Heavier jewelry repair
More output headroom for demanding repair tasks
FREE SAMPLE TEST
Test Your Jewelry Before You Buy
Send us your jewelry sample, material details and repair requirements. We’ll test the weld, record the process and recommend suitable settings before you order.
01
Send Your Jewelry Details
Material · Part Type · Thickness · Repair Area · Photo or Sample
02
We Select the Welding Setup
Power · Pulse Width · Frequency · Spot Size · Positioning Method
03
We Weld & Record the Test
Actual Welding · Close-Up Result · Before & After · Test Video
04
Review Before Ordering
Weld Result · Key Parameters · Recommended Setup · Application Advice
WHAT YOU’LL RECEIVE
A Clear Result Before You Order
Welded Sample
See the actual weld quality on your own or similar jewelry.
Test Video
Review the welding process, positioning and final result.
Recommended Parameters
Get suggested pulse width, frequency, spot size and operating settings for your task.
PACKAGE & CONFIGURATION
Know Exactly What Comes With Your YAG Jewelry Laser Welder
See what is included as standard, which parts are supplied for daily use, and which optional accessories can be added for different jewelry welding tasks.

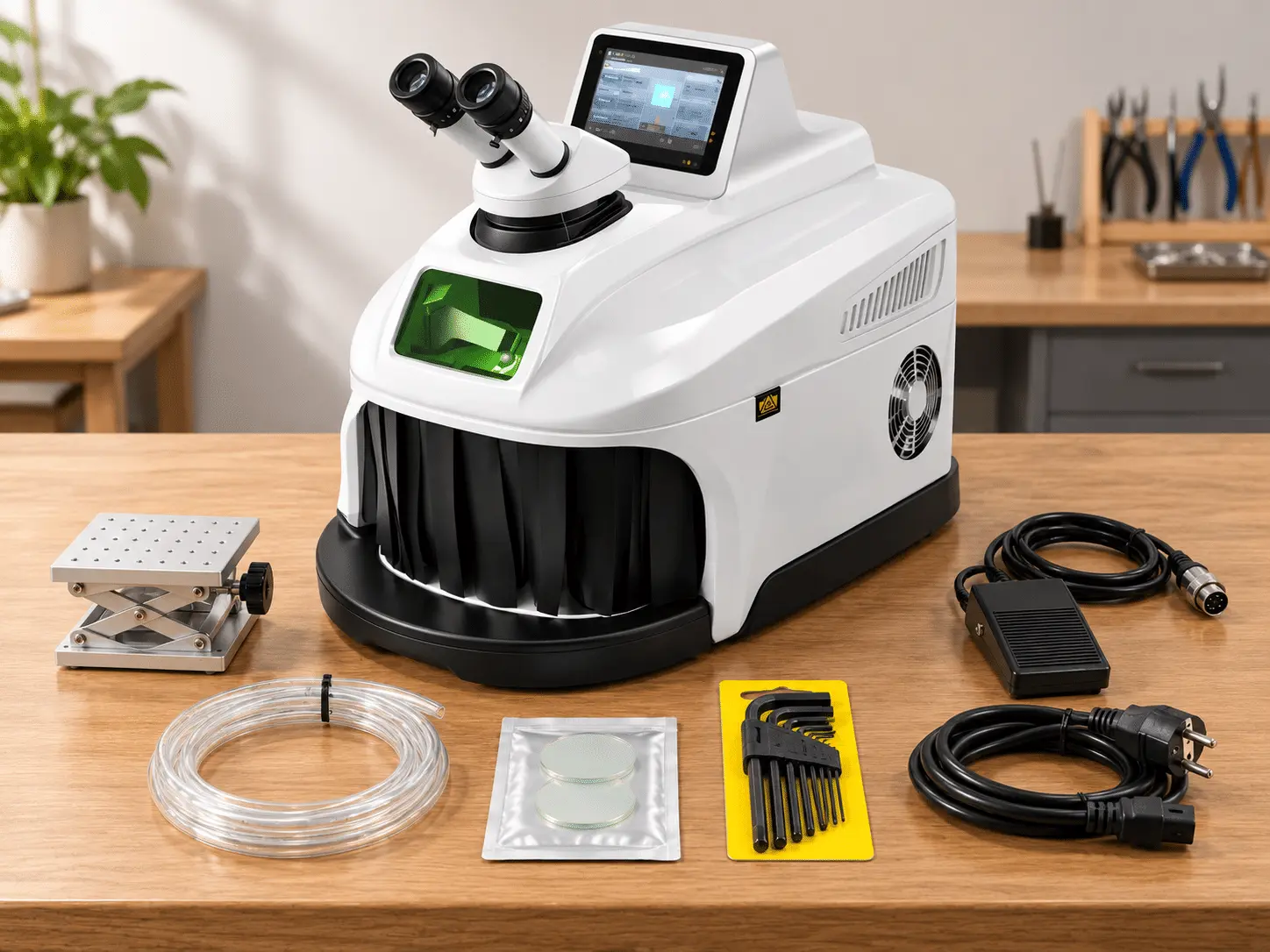

01 Included With the Machine

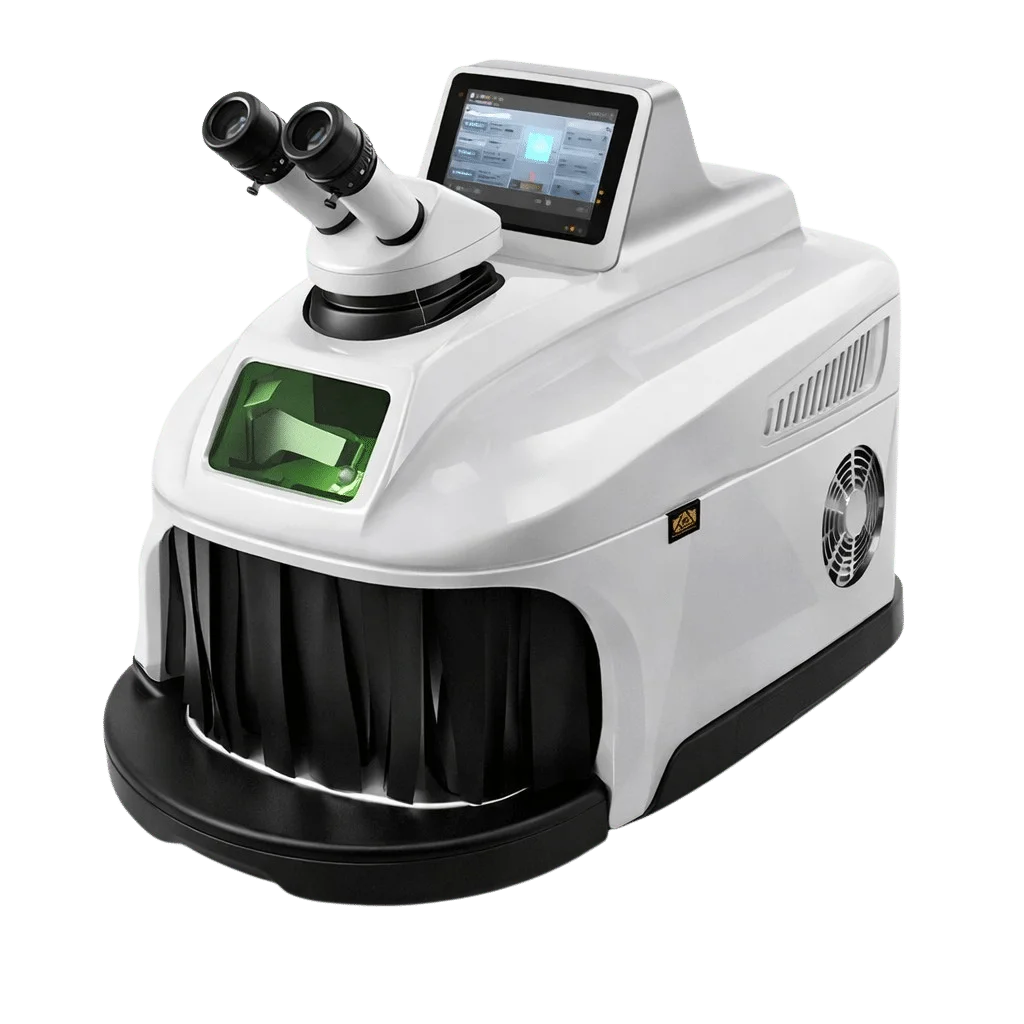

Jewelry Laser Welder
Main desktop YAG welding unit.

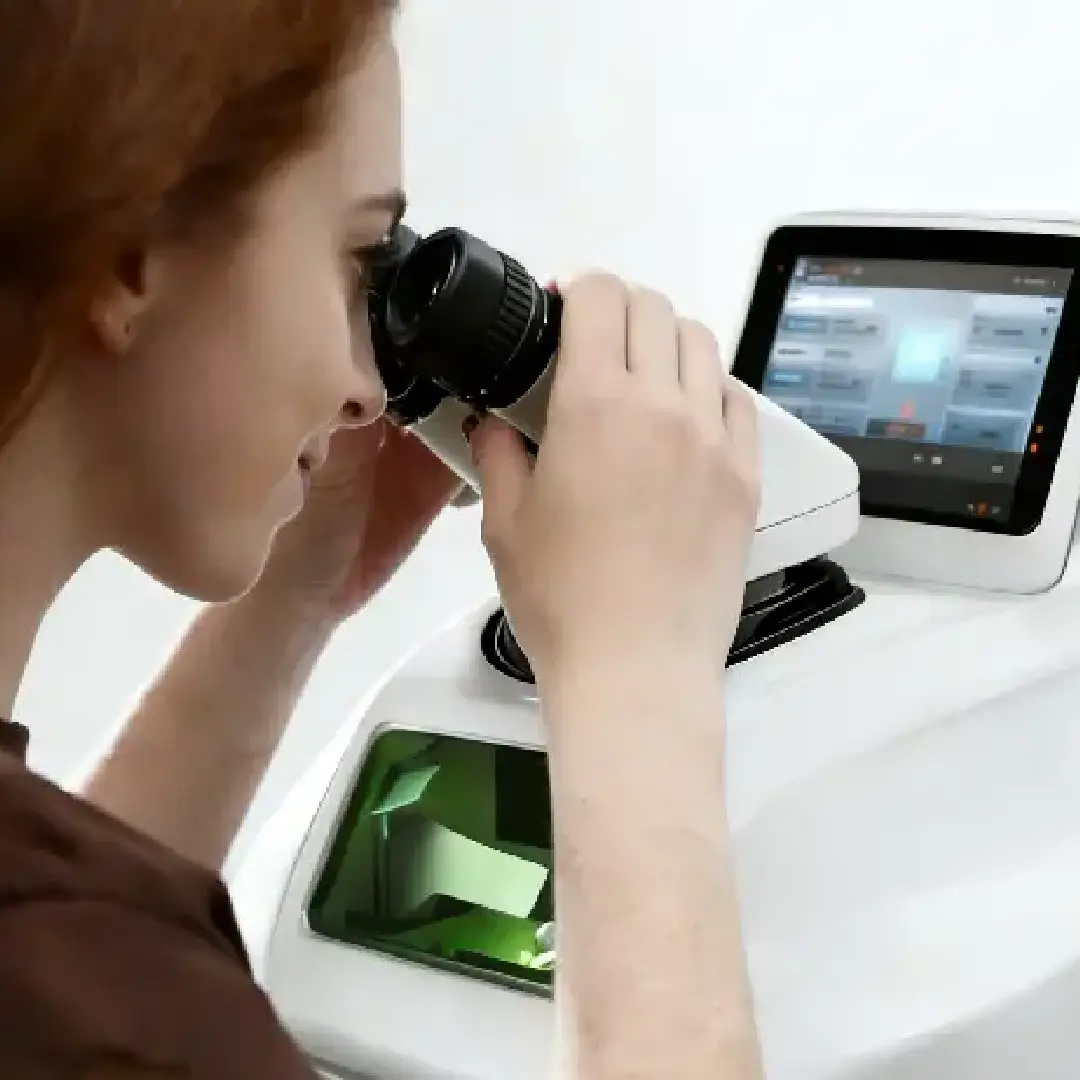

HD Microscope
Standard microscope for direct observation of fine jewelry work.
Foot Pedal
Hands-free laser triggering during welding.
Small Lifting Platform
Supports positioning and height adjustment for jewelry parts.
Power Cable
Standard power connection cable.
M10 Water Pipe
Supplied for the built-in water-cooling system.
M6 Argon Pipe
For supported shielding-gas applications.
Hand Support Pads
Provides support for steadier hand positioning during precision work.
Calibration Paper & Tools
Includes A4 calibration paper, hex wrench and SPP10 plug head for setup and adjustment.
02 Consumables & Spare Parts
Xenon Lamp
Replacement lamp for maintaining laser output over long-term use.
Protective Lenses
Two spare protective lenses are included for routine replacement.
Cooling Water
Use clean purified water and replace it periodically as part of routine maintenance.
Spare optical consumables can be ordered with the machine for easier routine maintenance.
03 Optional Add-ons
Rotary Axis
For supported rotating jewelry parts and specialized welding tasks.
Custom Fixtures
Available for repeated positioning, component joining and semi-automatic welding applications.
Additional Xenon Lamps & Lenses
Extra spare parts can be prepared for workshops with higher daily usage.
Voltage Stabilizer
Recommended where local power supply is unstable.
MAINTENANCE & CONSUMABLES
Predictable Maintenance. Simple Routine Care.
Routine maintenance mainly focuses on the cooling water, xenon lamp and protective optics. Most daily checks are simple, while the main wear parts follow clear replacement conditions or service intervals.
ITEM
WEEKLY
MONTHLY
YEARLY
REPLACE WHEN
Protective Lens
Wipe & check
Check for marks / dust
—
Dirty, burned or damaged
Cooling Water
Check water level
Check water condition
Replace every 3 months
Dirty or cooling becomes abnormal
Xenon Lamp
Check output stability
Check ignition / energy
Replace about once a year
Laser energy becomes weak
Cooling System
Keep vents clear
Check water flow
Full check
Water-flow or temperature alarm
Microscope / CCD
Wipe viewing area
Check image clarity
Full check
Image becomes unclear or optics are damaged
Water / Argon Hoses
Check connections
Check for leaks / wear
Full check
Loose, leaking or damaged
Routine consumables and spare parts can be ordered with the machine for easier future maintenance.
EASY DAILY OPERATION
From Setup to Welding, Keep It Simple.
Preset programs, touchscreen control and clear visual guidance help operators move from parameter selection to actual welding with fewer repeated steps.
SITE READINESS
What You Need to Run It in Your Shop
Prepare the right power, ventilation, cooling conditions and laser-safe workspace before the machine arrives. Most requirements are simple, but getting them ready in advance makes setup and daily use much smoother.
BEFORE SHIPMENT
Power · Ventilation · Cooling · Grounding · Safety
01 Power Supply
Prepare a stable 220V ±10% / 50Hz power supply with sufficient capacity for the machine. A stable voltage helps protect the electrical system and keeps welding performance consistent.
02 Ventilation & Fume Control
Use suitable local extraction or ventilation to remove welding fumes and keep the working area cleaner during jewelry repair.
03 Keep Cooling Ventilation Clear
Leave enough space around the machine for ventilation and heat dissipation, and keep the built-in water-cooling system unobstructed during operation.
04 Grounding & Connections
Provide reliable grounding and keep power, fiber and signal cables protected from sharp bends, traffic and hot surfaces during cleaning.
05 Laser-Safe Work Area
Set up a controlled cleaning area with suitable laser protection, PPE and restricted access to protect the operator and nearby personnel.
SUPPORT AFTER DELIVERY
Support That Continues After Your Machine Arrives
From first startup to parameter adjustment, troubleshooting, maintenance and spare parts, our team provides practical support to help you keep daily jewelry welding running smoothly.
01
SETUP GUIDANCE
Everything you need to get started with less guesswork from day one.
Installation & Operation Materials
Manuals and videos cover setup, startup, basic operation and maintenance.
On-Machine Guidance
Operating labels and safety notices help operators identify key steps directly on the machine.
02
ENGINEER SUPPORT
Real engineer support when you need more than a manual.
Remote Technical Guidance
Share photos or video with our engineers for remote diagnosis and step-by-step guidance.
Welding & Parameter Support
Get help with pulse width, frequency, spot size, positioning and common jewelry repair settings.
Translation Support
Online technical communication can be supported with translation when needed.
03
ONGOING SUPPORT
Support continues after startup, so you’re not left on your own once the machine is running.
7×24 Support Availability
Our after-sales team is available 7 days a week, 24 hours a day for technical support requests.
Regular Follow-Up
Our service team follows up on machine use, answers questions and provides maintenance recommendations.
Machine Service Records
Each machine can be linked to a customer service record, helping our team review previous information and locate problems more efficiently.
Spare Parts & Warranty
A dedicated spare-parts manager helps arrange replacement parts and cross-border dispatch, with 2-year parts warranty support according to the supplied terms.
Technical Specifications
Model
QCW(60/600W)、(150/1500W)、(200/2000W)
Laser working material
Ytterbium-doped fiber
Laser wavelength
1080
Maximum peak power
600W/1500W/2000W
Laser pulse width
1~20Hz continuously adjustable
Beam quality (BPP)
1~2mm×mrad
Photoelectric conversion efficiency
60%
Cold way
air cooling
Maximum input power
2KW
Laser source life
>100,000 hours
Power demand
110-240V/50-60hz
Overall dimensions
610*290*430mm
Packing size
690*370*510mm
Net weight
39kg
Packing weight
55kg
MaxWave Permanent Jewelry Welder FAQs
Thinking about starting or upgrading your permanent jewelry business? Here are the most common questions customers ask—covering ease of use, safety, materials, and real-world performance—so you can get started with confidence.
Is a Permanent Jewelry Welder Easy to Use?
Yes. With preset parameters and simple controls, most users can start welding chains and bracelets within minutes—no complex training required.
What Materials Can a Permanent Jewelry Welder Handle?
Yes. With optimized beam control and stable output, the system ensures sharp details, clean edges, and consistent results—even on delicate surfaces.
Is Permanent Jewelry Welding Safe for Daily Use?
Yes. With built-in safety protection and proper eyewear, it is safe for daily operation in retail environments.
How Can a Permanent Jewelry Welder Grow Your Business?
Create seamless jewelry, serve more clients, and increase your daily income—all with one compact machine. From bracelets and necklaces to custom-fit pieces, you can offer high-demand permanent jewelry services without complex tools or long training.
With fast welding, minimal setup, and clean, polished results, you can complete more orders in less time. Perfect for studios, pop-up events, and mobile services, it helps you attract more customers, boost repeat business, and maximize your profits.
Start Your Permanent Jewelry Business Today
Find the Right Laser Machine for Your Needs
Tell us what you want to make — we’ll recommend the best machine for you.
- Not sure which machine to choose? We’ll help you
- Easy to use — even for beginners
- Fast reply within 12–24 hours
