Battery-Powered Backpack Pulsed Laser Cleaner for On-Site Industrial Cleaning
-
Battery or AC Power: Clean off-grid · Plug in as needed
-
Backpack Portability: No trolley · Easier access to tight spaces
-
Precise Pulsed Cleaning: Adjustable pulses · Less surface impact
-
7 Cleaning Modes: Multiple scan patterns · More cleaning options
-
Gun-Head Control: Adjust on-site · Fewer trips to the main unit
Built to Fit Your Work, Not the Other Way Around
01

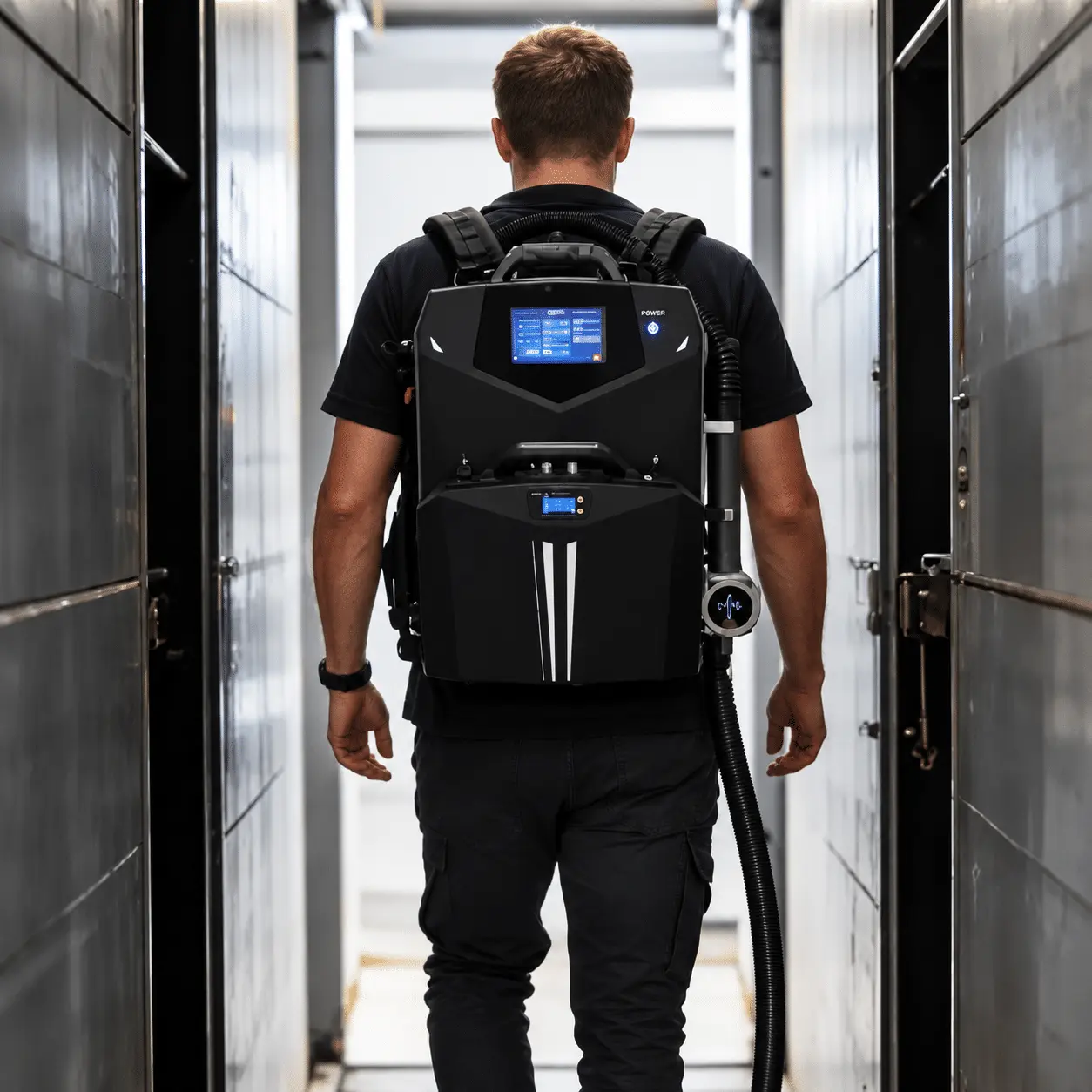

Go Where Trolleys Can’t
Carry the cleaner through stairs, narrow passages, and hard-to-reach work areas.
02
Clean Beyond Power Outlets
Work off-grid with a compatible battery, or plug in when AC power is available.
03
Adjust Without Walking Back
View and adjust supported settings at the gun head, right beside your workpiece.
Backpack Laser Cleaner Applications: Where It Works Best
CLEANING APPLICATION
TYPICAL PARTS
CLEANING TASKARTS
KEY ADVANTAGES
On-Site Laser Rust Removal
Real Cleaning Results
Actual cleaning examples showing the contaminant, surface and power used for each job.
SAMPLE 01

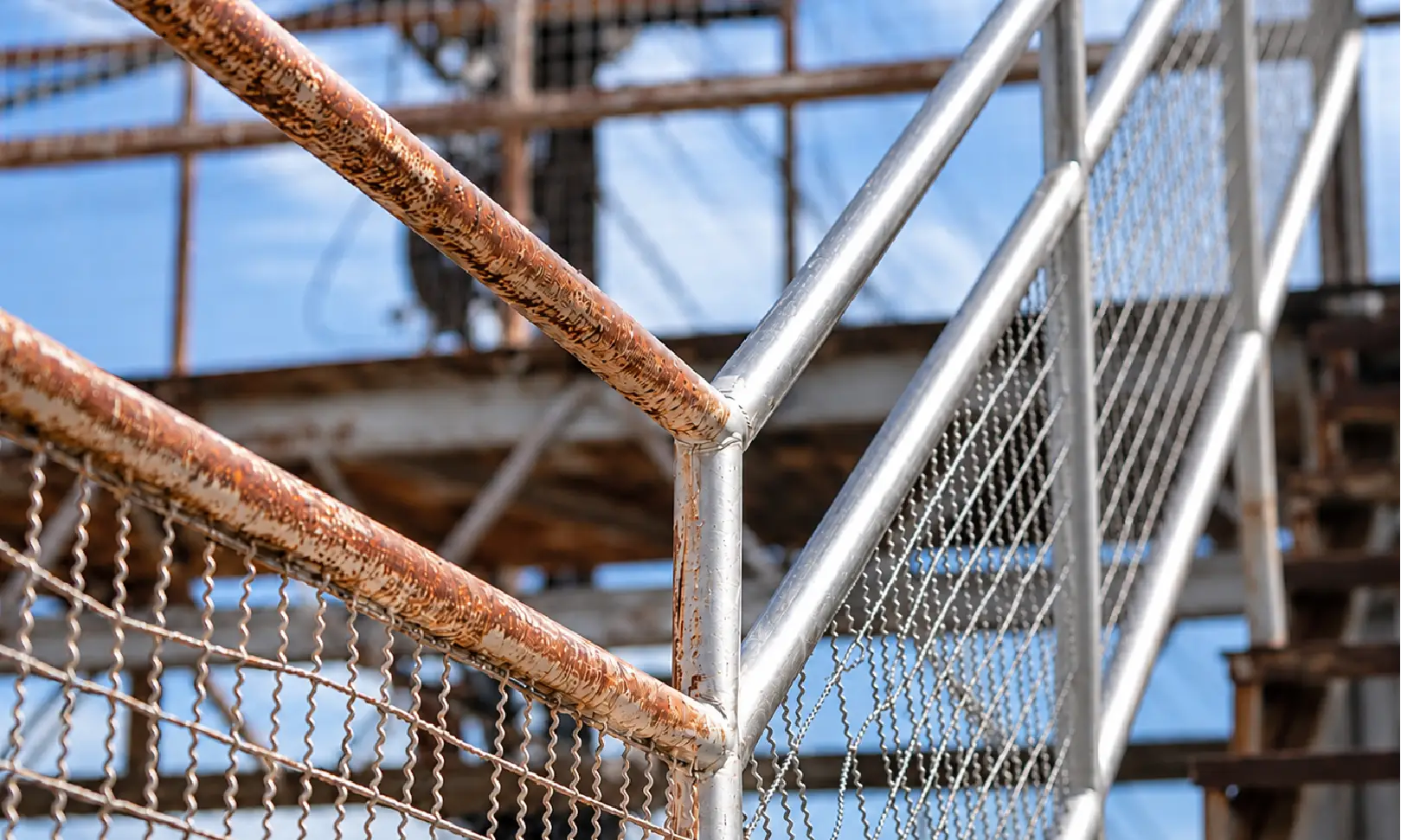

Elevated Steelwork Cleaning
STEEL RAILINGS · BACKPACK ACCESS · NO TROLLEY
SAMPLE 02
Off-Grid Equipment Maintenance
REMOTE EQUIPMENT · BATTERY OPTION · ON-SITE CLEANING
SAMPLE 03
Tight-Access Weld Cleaning
PIPE JOINTS · GUN-HEAD CONTROL · TARGETED SCANNING
SAMPLE 04

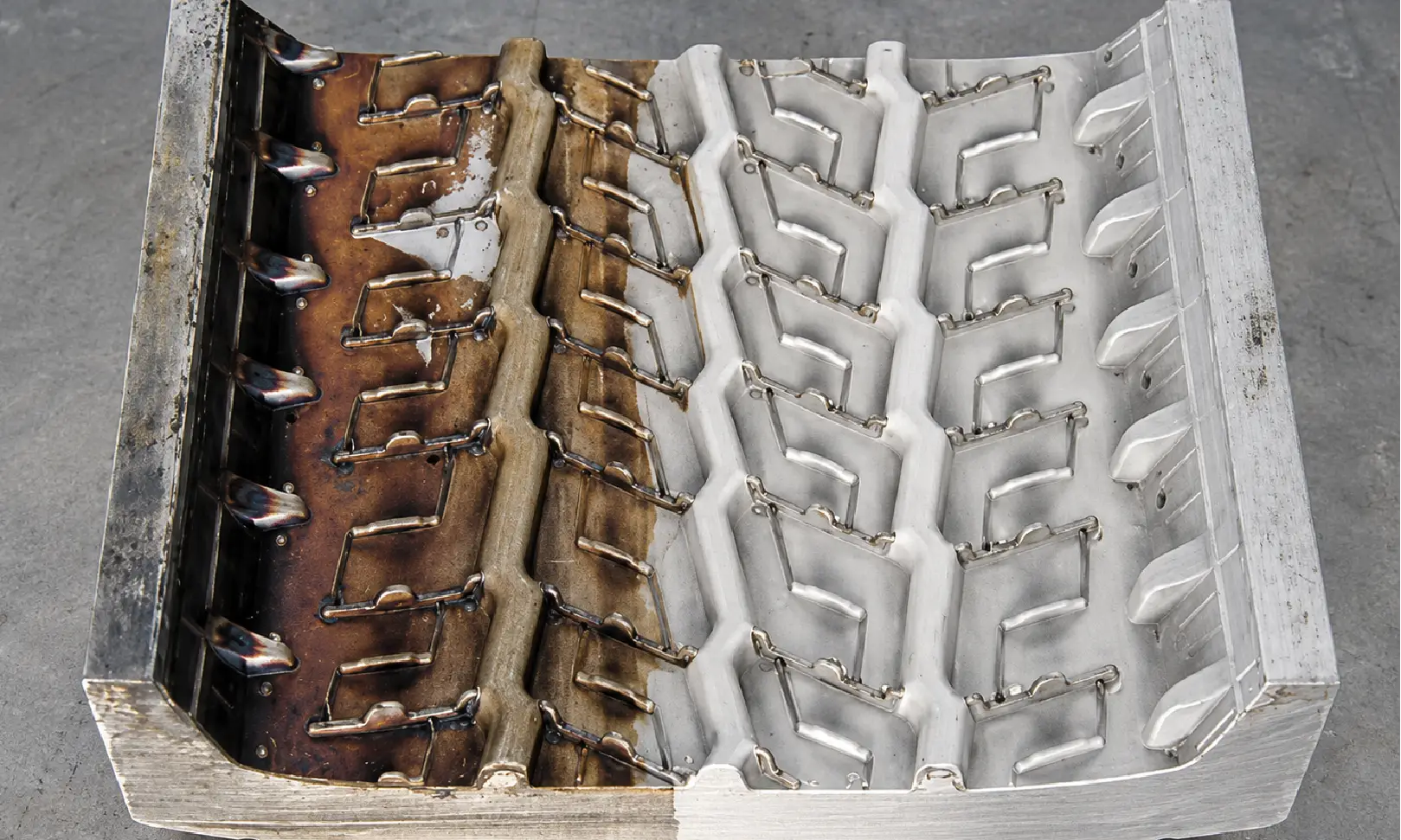

Precision Mold Detail Cleaning
MOLD CAVITIES · ADJUSTABLE PULSES · NON-CONTACT CLEANING
Where This Laser Cleaner Fits

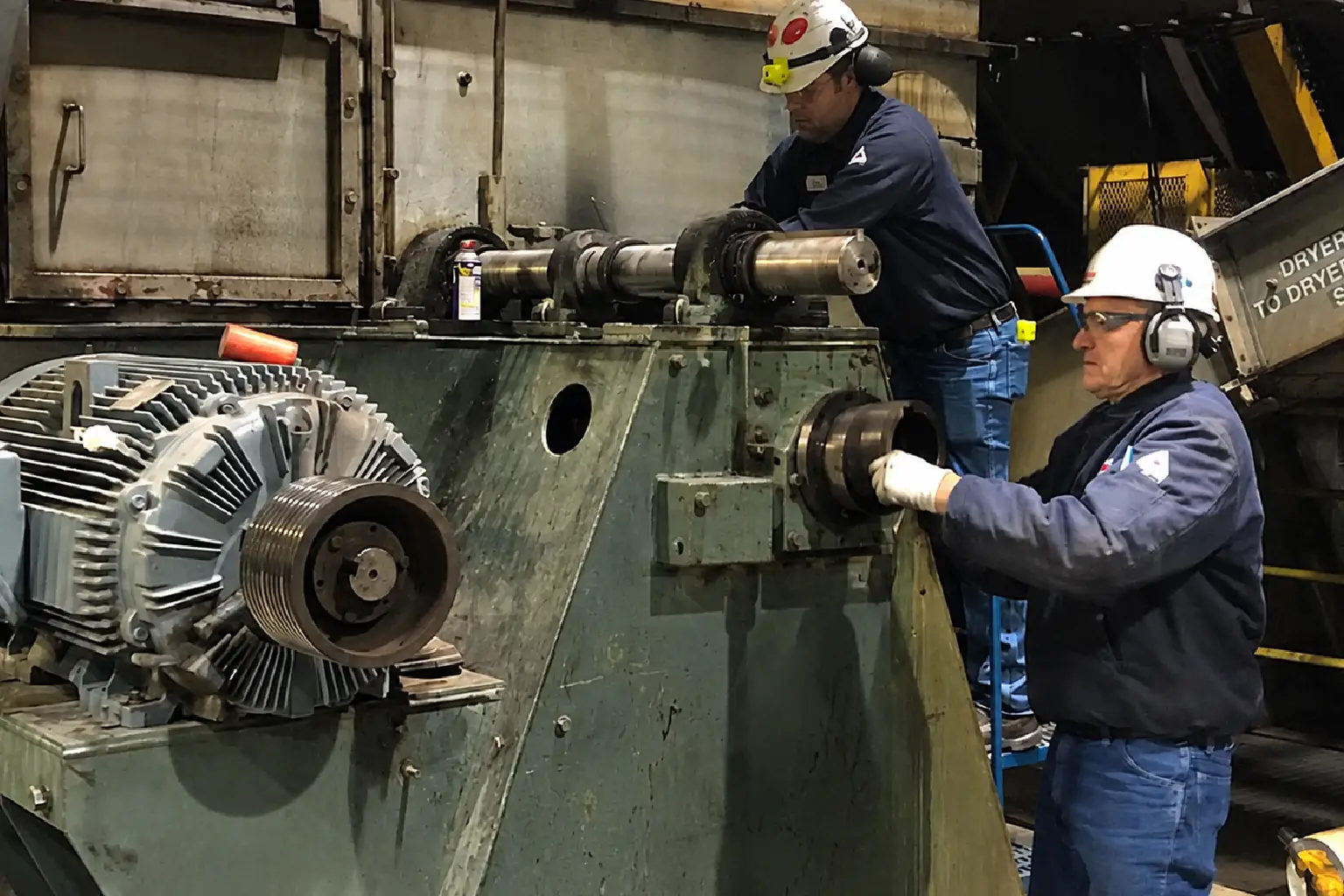

Industrial Maintenance & Field Services

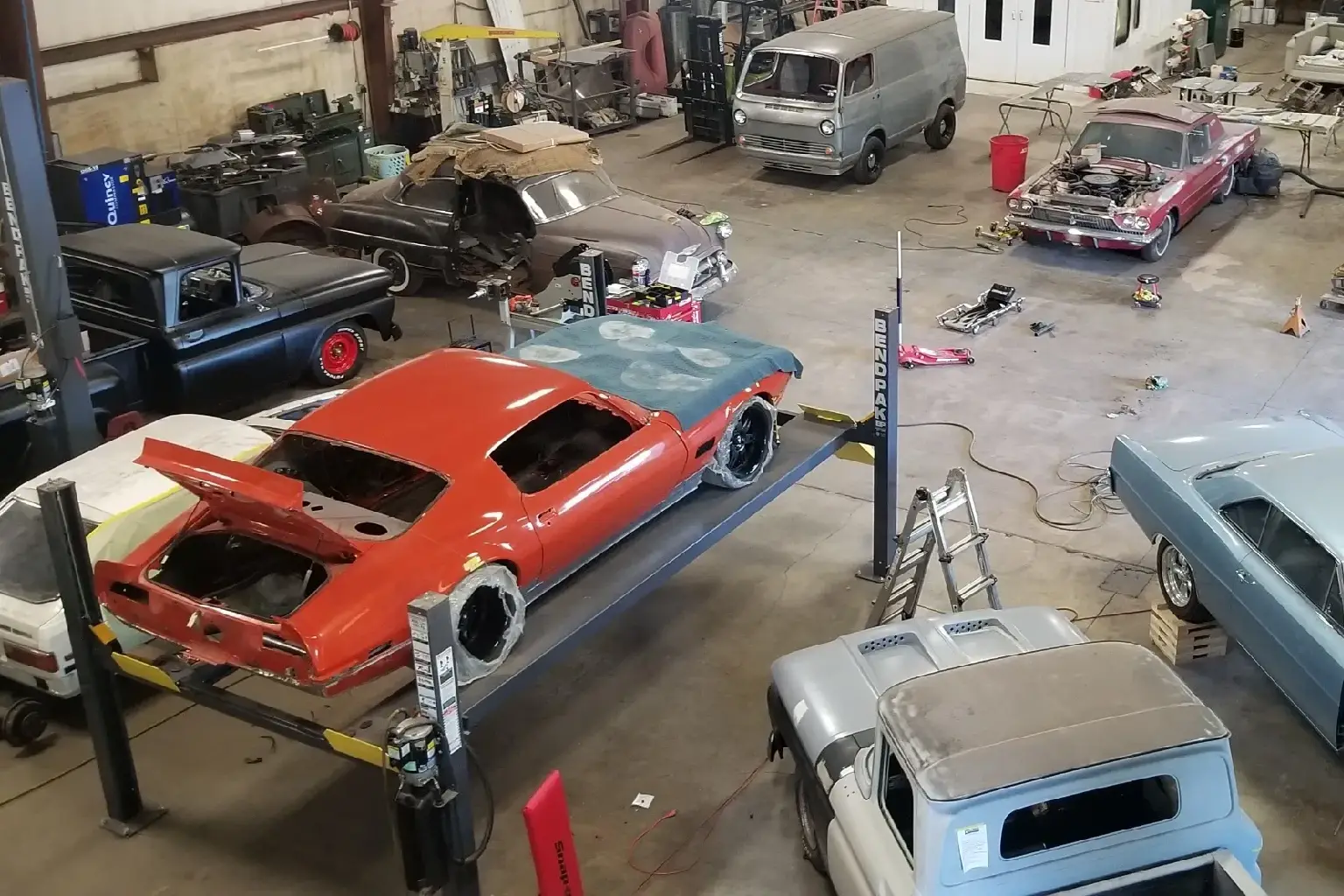

Automotive Repair & Restoration

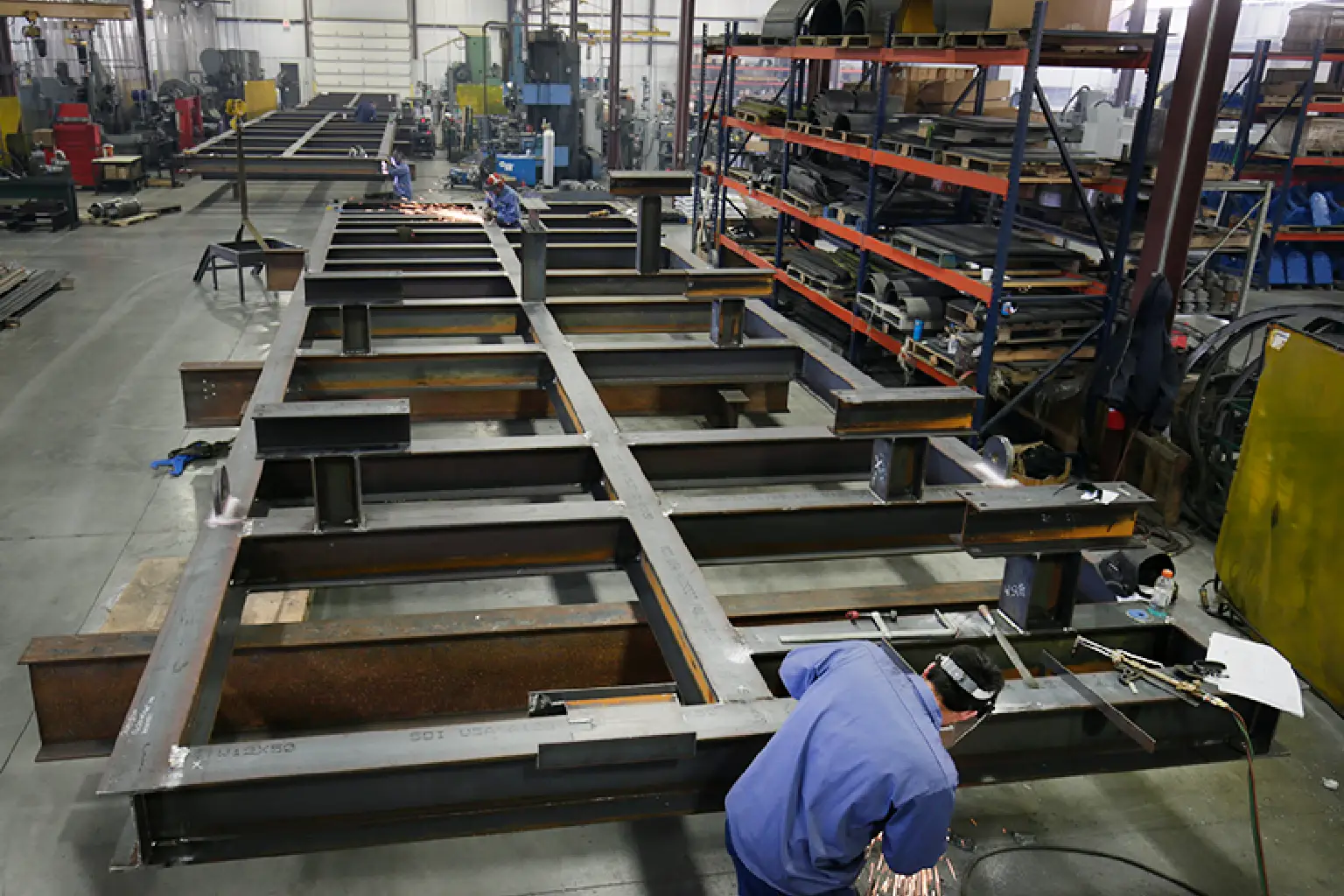

Metal Fabrication & Welding Shops

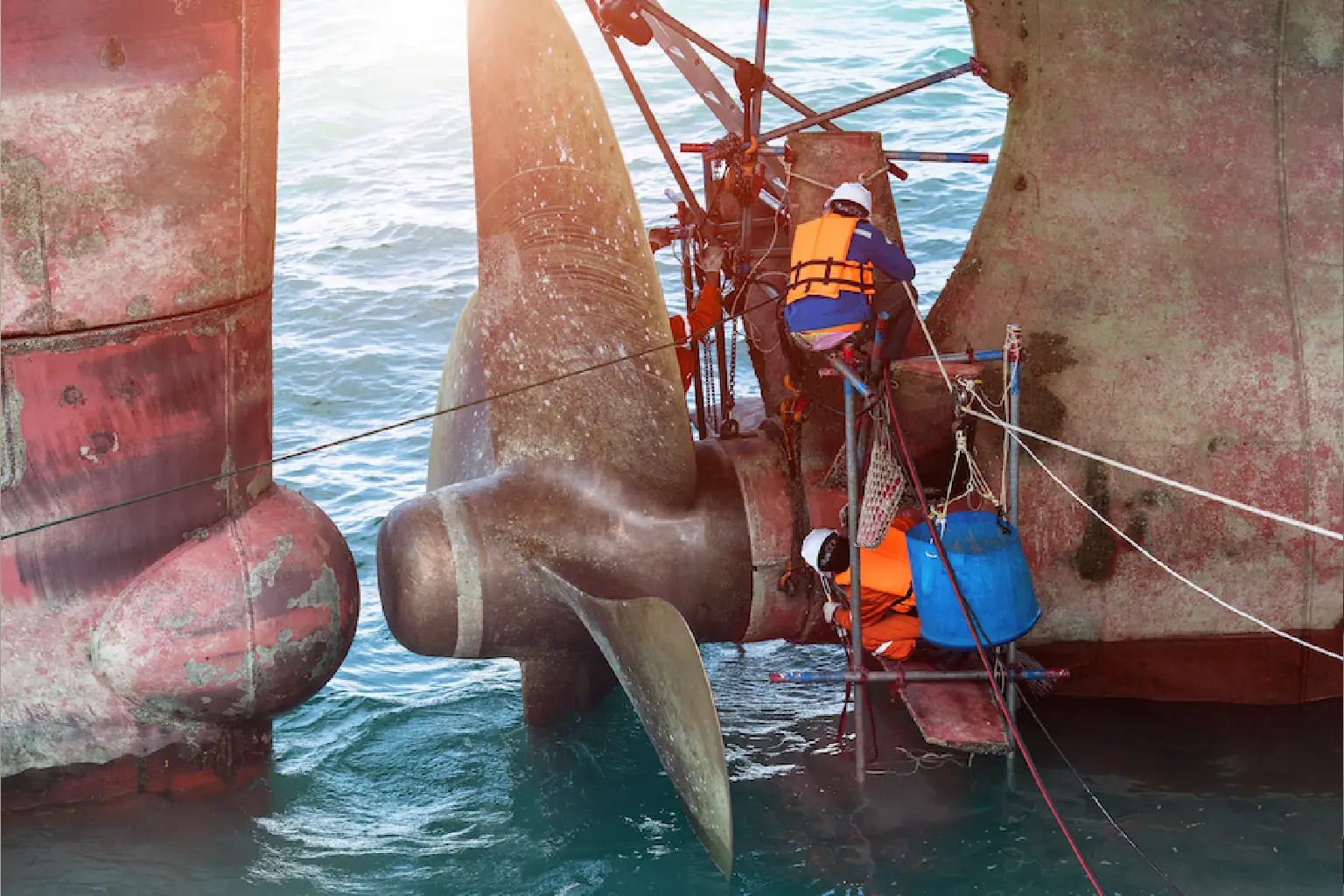

Marine & Ship Maintenance
MAXWAVE CLEANING SYSTEM
What Makes This MaxWave Backpack Laser Cleaner Different
From removable battery power to gun-head controls and adjustable scanning, MaxWave combines practical features to make on-site laser cleaning more convenient and adaptable.

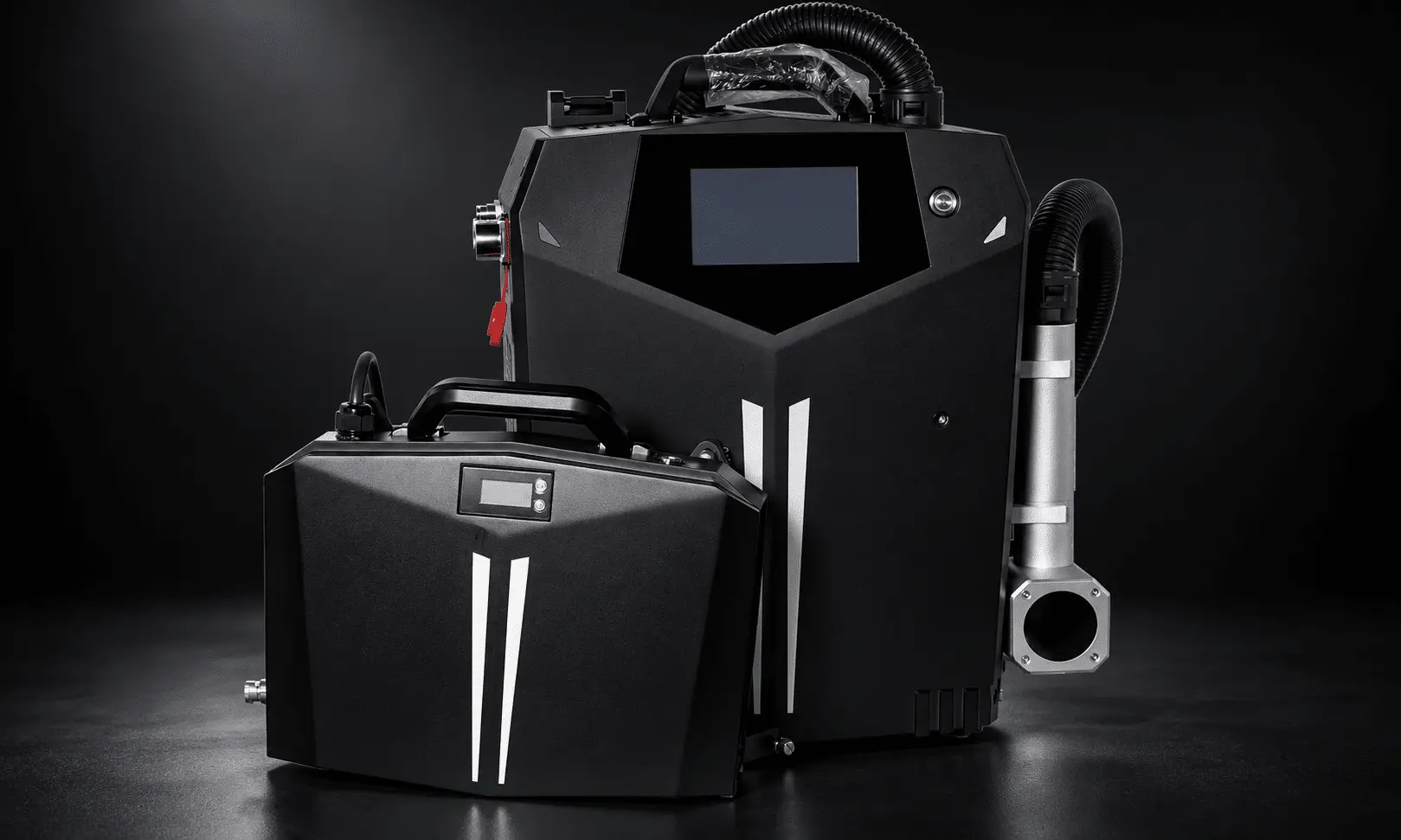

Removable Battery & Power Display
The removable lithium battery supports cleaning away from power outlets, while its built-in display shows battery status during operation. This makes it easier to monitor remaining power and plan cleaning time before moving to the next job.
BATTERY 960Wh · 20Ah
RATED RUNTIME 100W: 150 min · 200W: 100 min
POWER OPTIONS Removable Battery · AC Adapter

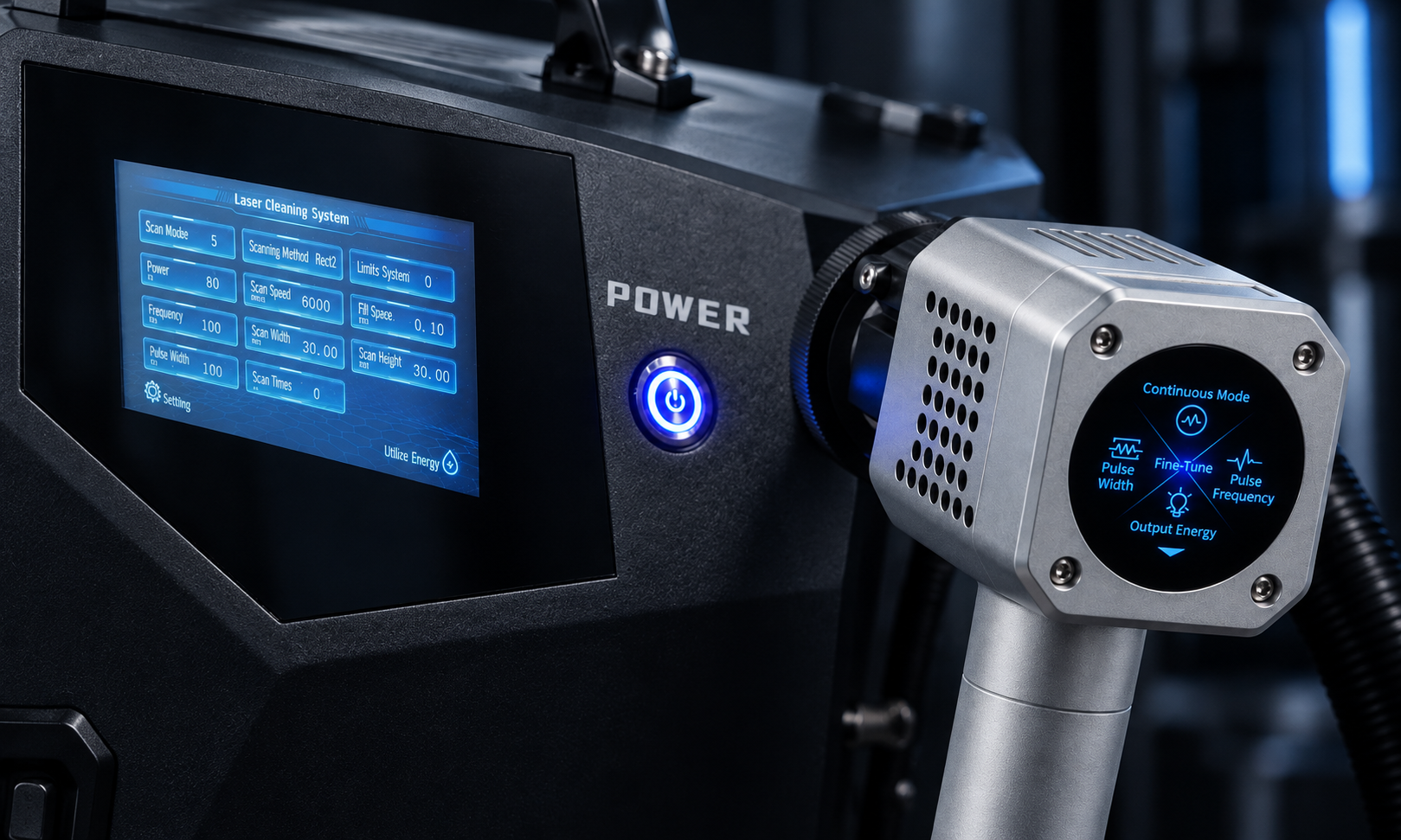

Adjust Settings Without Walking Back
MAIN CONTROL Touchscreen
GUN CONTROL Bluetooth-Enabled
ON-HEAD DISPLAY Cleaning Modes & Supported Settings
Match the Scan to the Cleaning Area
SCAN CONTROL Dual-Axis Scanning
CLEANING MODES 7 Patterns
SCAN WIDTH 100–260 mm (Lens-Dependent)
Choose the Right Backpack Laser Cleaner for Your Job
Compare 100W, 200W, and 300W backpack pulsed laser cleaners based on cleaning precision, contamination level, and workload—not wattage alone.
POWE
BEST FOR
TYPICAL CLEANING JOBS
WHY CHOOSE IT
100W
Light-Duty Laser Cleaning

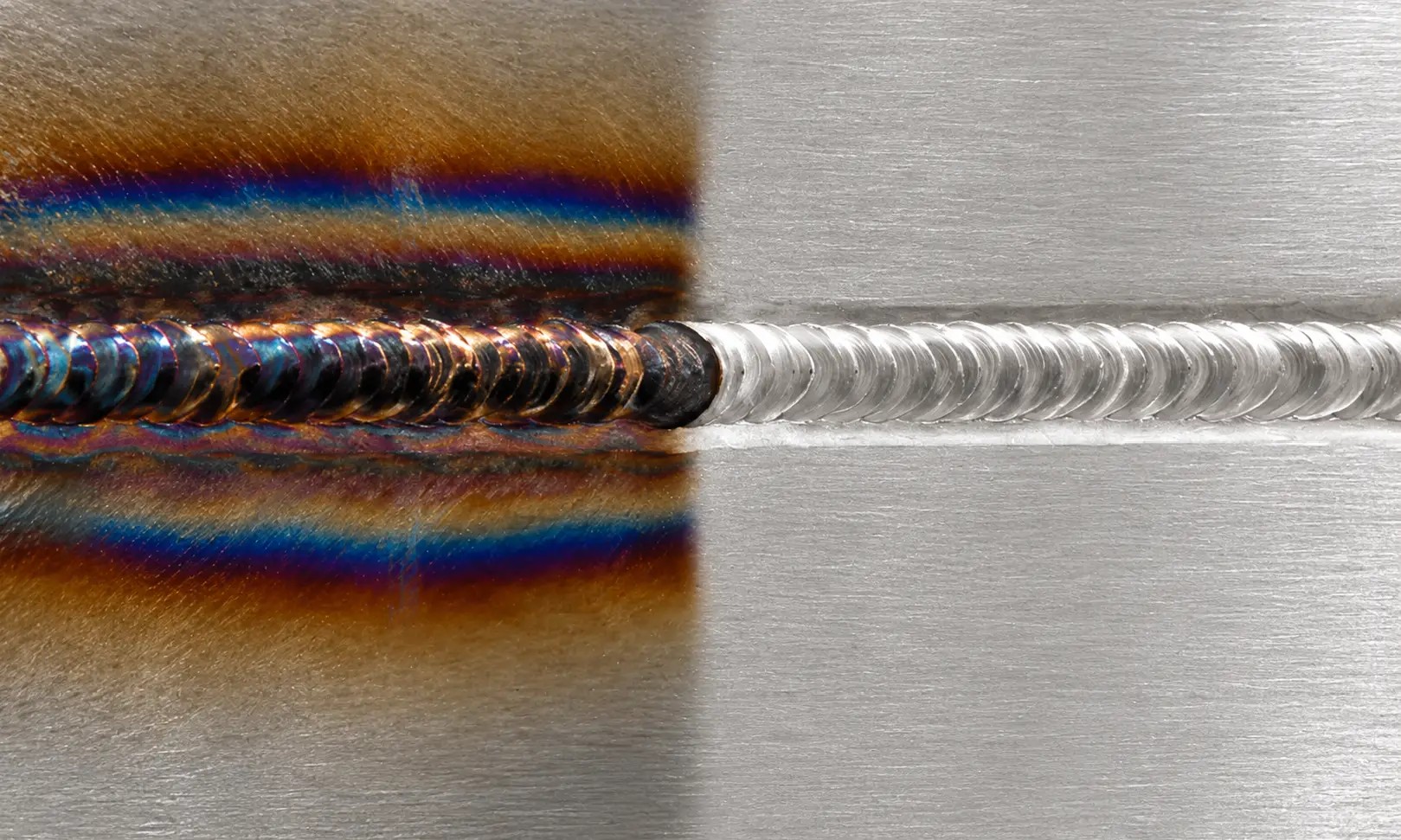

Light Rust Removal · Weld Heat Tint · Small Metal Parts
Lower Power Use · Longer Battery Runtime
200W
Tougher Spot Cleaning
Laser Rust Removal · Spot Paint Removal · Surface Residues
5mJ Pulse Energy for Tougher Deposits
300W
Larger or Repeated Cleaning Jobs
Laser Mold Cleaning · Larger Rust Patches · Repeated Parts
Higher Average Power for More Cleaning Work
ON-SITE CLEANING COMPARISON
Traditional vs Trolley vs Backpack Laser Cleaning
Compare mobility, setup requirements, and typical applications to find the right cleaning solution for different worksites.
Traditional Cleaning
Easy-to-Carry Tools
Portable hand tools are easy to carry, but larger jobs require more manual work.
Extra Preparation & Cleanup
Abrasives, chemicals, or powered tools may need additional preparation and cleanup afterward.
Best for Small Touch-Ups
Suitable for occasional maintenance on small, accessible areas with simple cleaning requirements.
Trolley Laser Cleaner
Easy Movement on Flat Floors
Wheeled machines move easily across flat workshop floors, but stairs can limit access.
Floor Space & Power Setup
Requires suitable floor space and power connections according to the selected machine.
Best for Workshop Cleaning
Suitable for repeated cleaning at accessible workstations and floor-level industrial equipment.

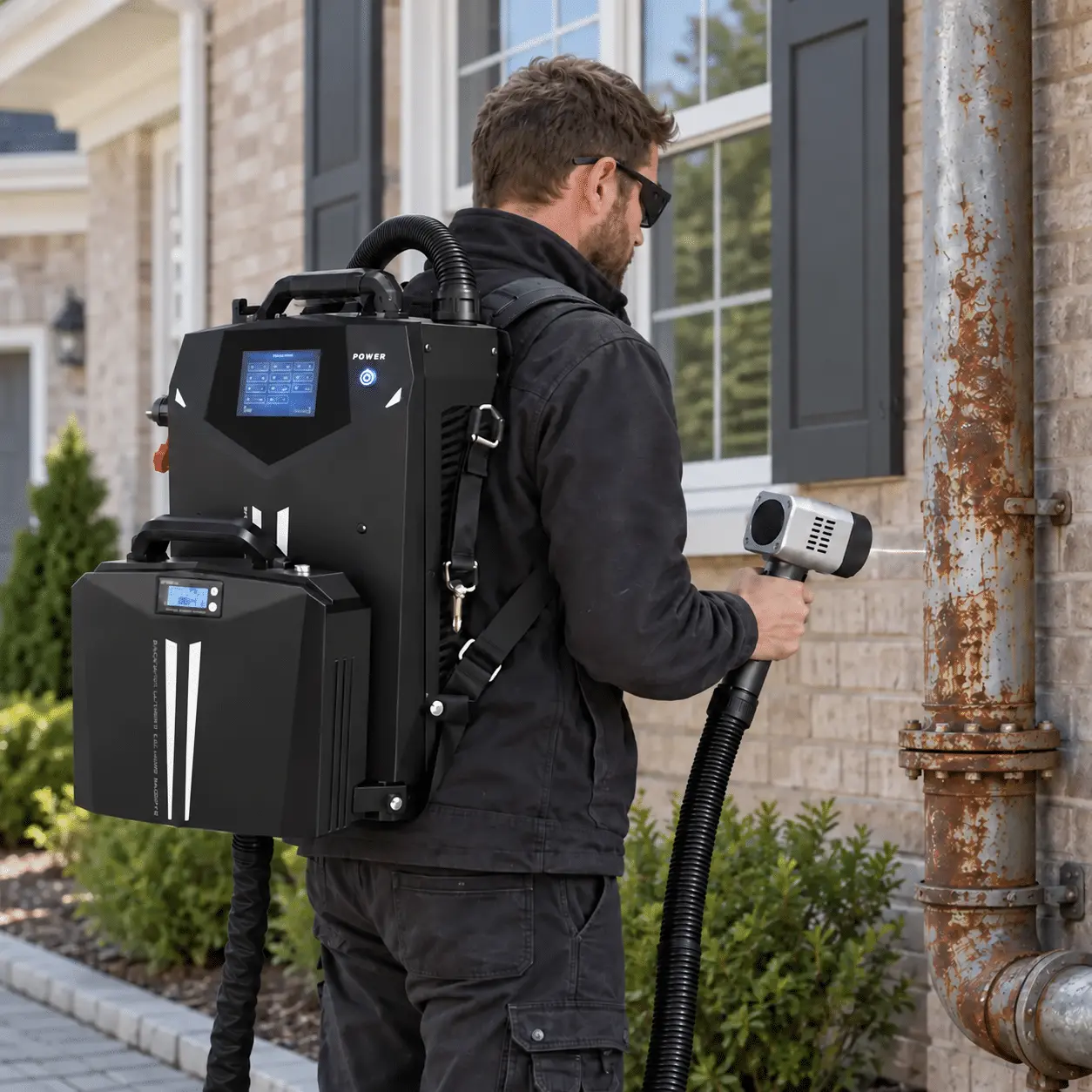

Backpack Laser Cleaner
Easy Access Beyond Flat Floors
Backpack carrying makes stairs, narrow passages, and uneven worksites easier to reach.
Battery-Powered Operation
Battery power supports remote cleaning without running a mains cable across the site.
Best for Mobile Spot Cleaning
Suitable for localized maintenance on fixed equipment and hard-to-move metal parts.
FREE SAMPLE TEST
Test Your Cleaning Job Before You Buy
Send us your material, contamination details, and cleaning requirements. We’ll test the sample, record the results, and recommend a suitable backpack laser cleaner configuration.
01
Send Your Cleaning Details
Material · Contamination · Worksite · Photo or Sample
02
We Select the Right Setup
Laser Power · Battery Needs · Cleaning Settings
03
We Test & Record
Sample Cleaning · Before & After · Test Video
04
Review Before Ordering
Cleaning Results · Recommended Power · Configuration
WHAT YOU’LL RECEIVE
A Clear Result Before You Order
Cleaned Sample
See the actual cleaning result on your own or similar material.
Test Video
Review the cleaning process and before-and-after results.
Recommended Backpack Setup
Get suggested laser power, cleaning settings, and power options.

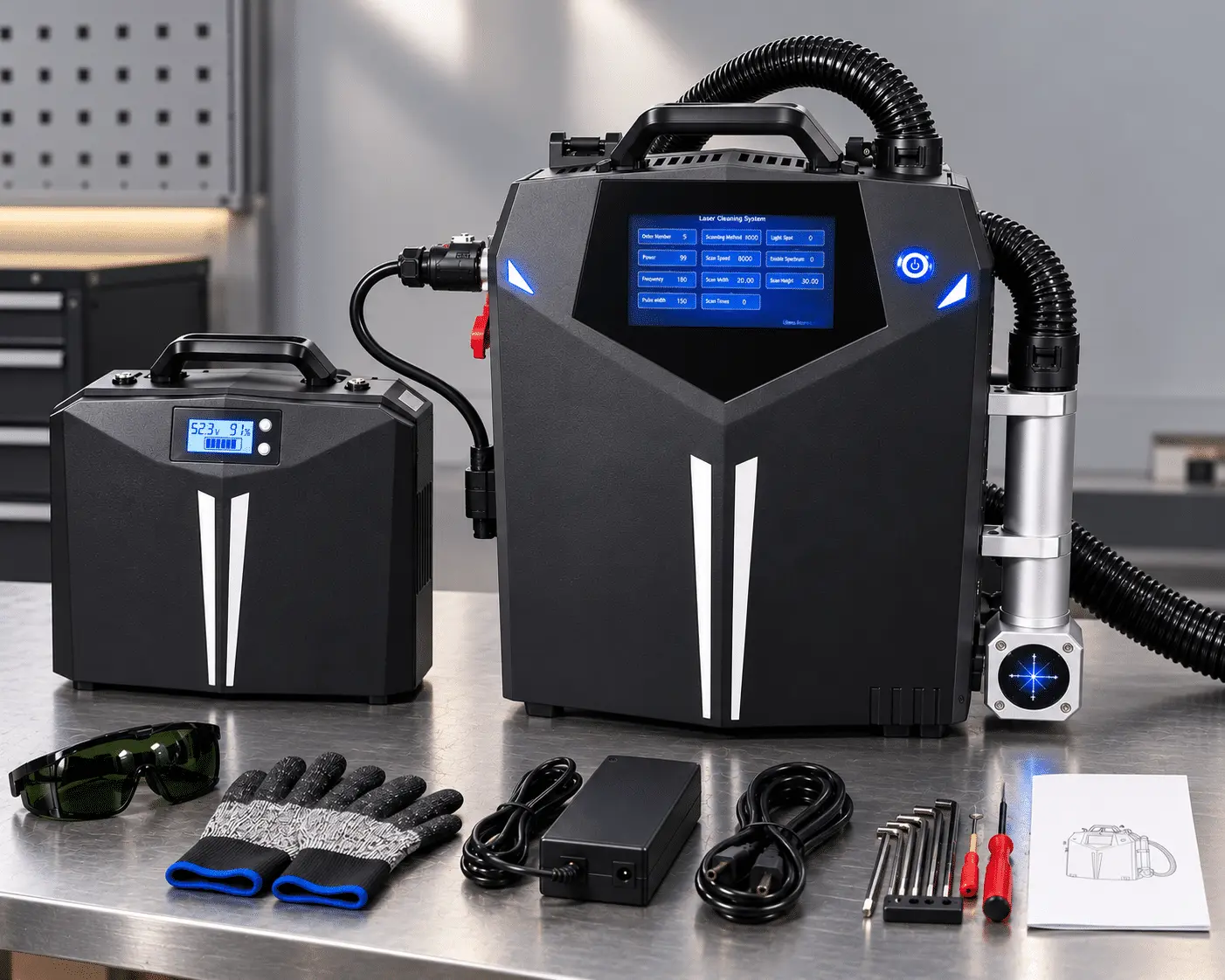

PACKAGE & CONFIGURATION
Know What Comes With Your Backpack Laser Cleaner
Explore the backpack cleaning system, battery setup, and available accessories. Confirm the right components and configuration before placing your order.

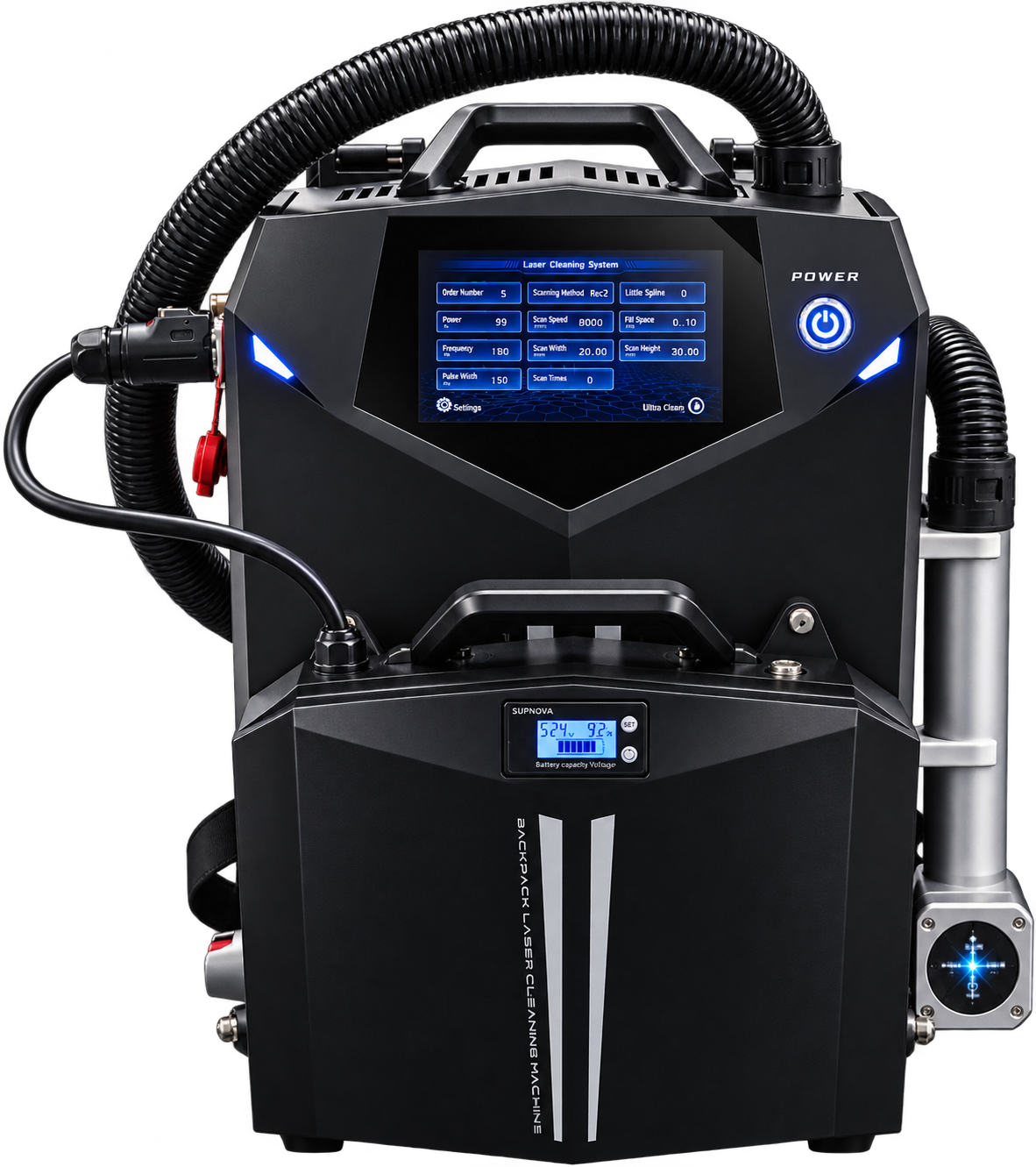

01 Backpack Cleaning System
Backpack Laser Cleaning Unit
Air-cooled pulsed laser cleaning system with shoulder straps for mobile operation.
Handheld Cleaning Gun
Compact cleaning head for targeted rust, paint, and oxide removal.

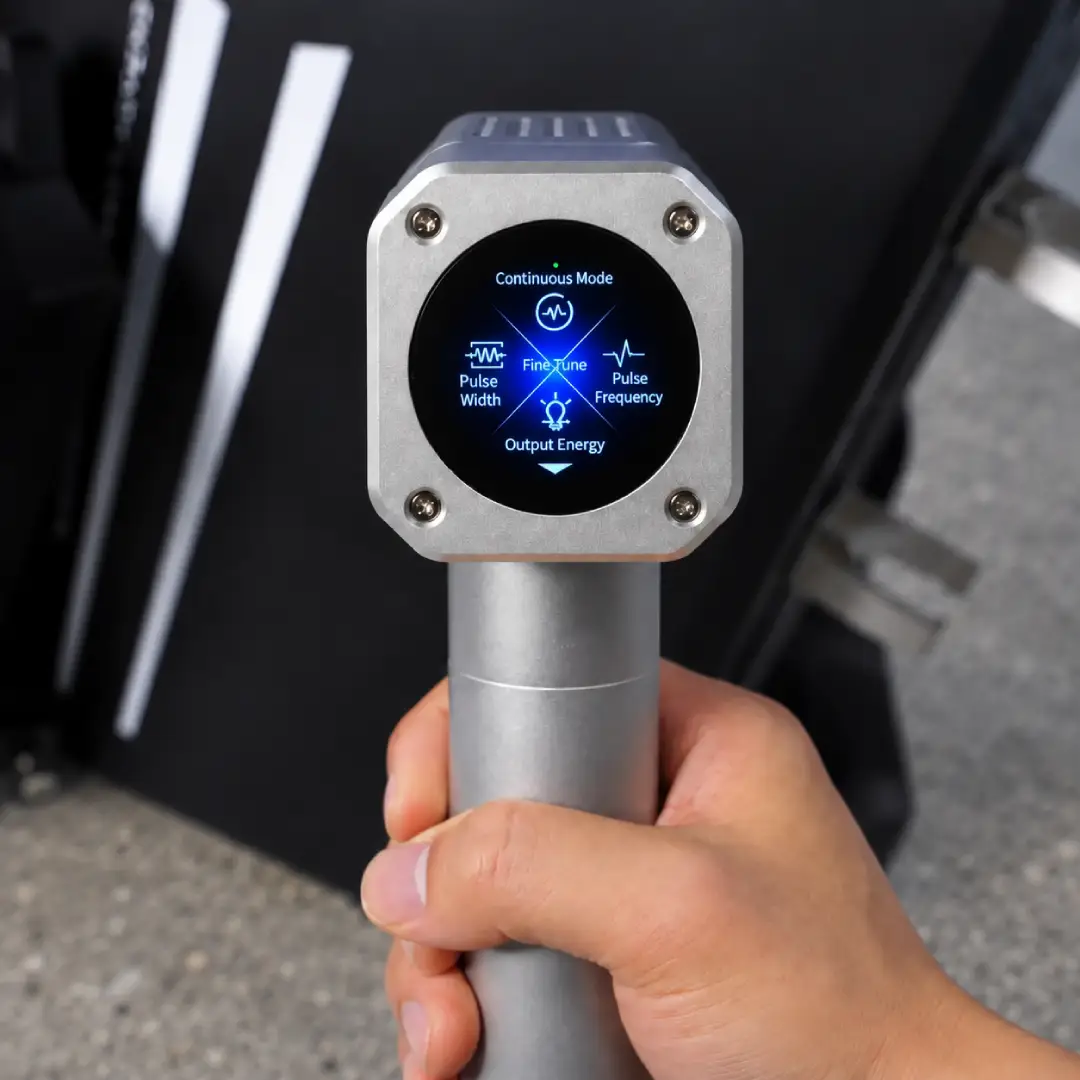

Gun-Head Control Screen
View and adjust supported cleaning settings directly at the gun head.

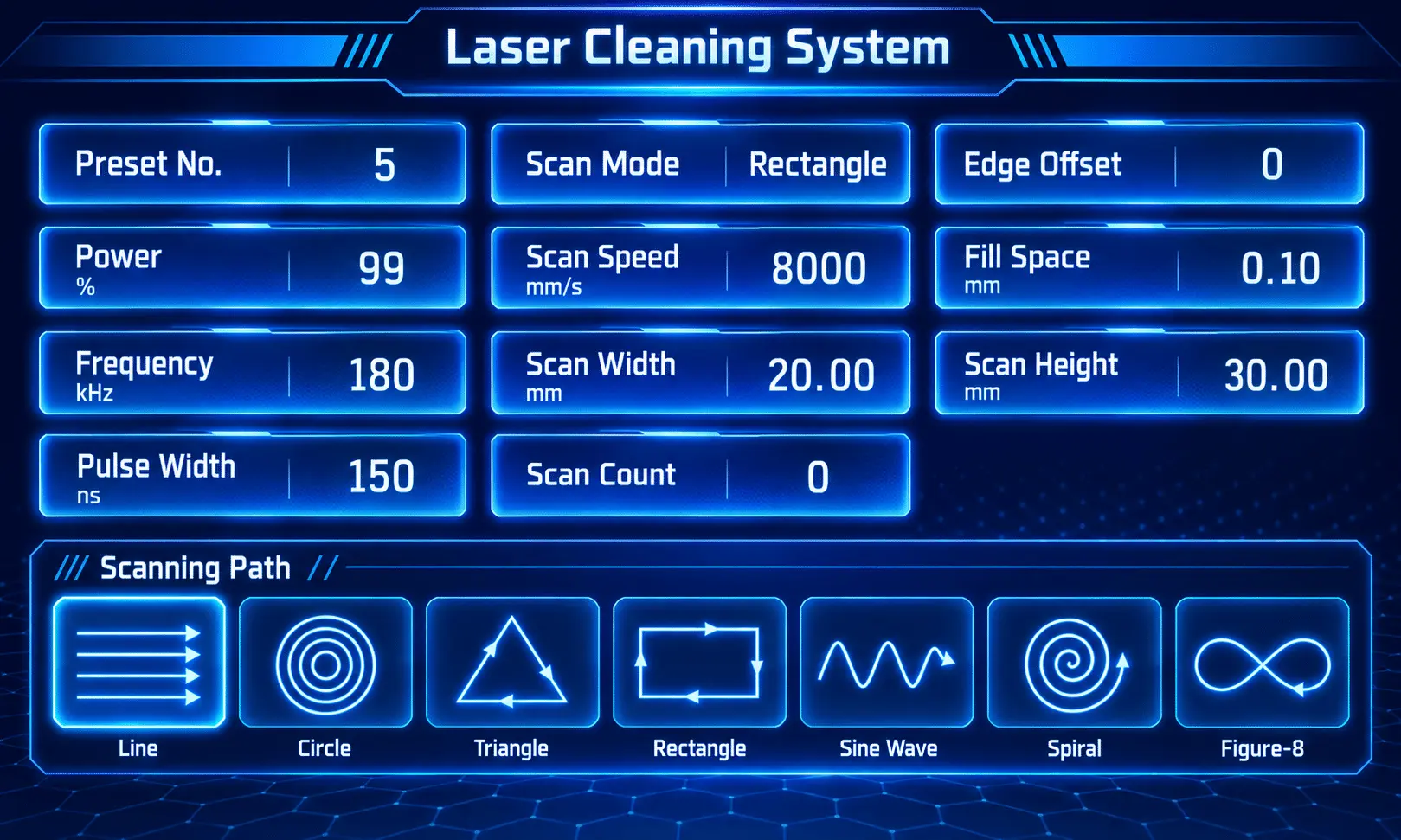

Main Touchscreen
Central control interface for cleaning parameters and scan patterns.
AC Power Adapter
Power adapter for compatible 110V/220V AC supplies.
02 Battery & Power Configuration
Removable Lithium Battery
Battery module supports cleaning where mains power is unavailable.
Battery Status Display
Built-in display for checking battery status during operation.
Battery Runtime
100W: Up to 150 min · 200W: Up to 100 min, based on the specified battery configuration.
AC Power Operation
Connect to mains power when available without relying on battery charge.
03 Accessories & Spare Parts
Field Lens Options
Different focal lengths for various scanning widths and cleaning areas.
Fiber Cable Lengths
1.5 m · 3 m · 5 m configurations for different working distances.
Replacement Optical Parts
Compatible protective optics and replacement lenses can be confirmed when ordering.
Additional Battery Options
Confirm compatible battery availability for extended mobile cleaning requirements.
BACKPACK LASER CLEANER MAINTENANCE
Simple Care. Ready for the Next Job.
Regular checks of the battery, backpack straps, cleaning head, and cooling system help keep your laser cleaner ready for mobile work.
ITEM
WEEKLY
MONTHLY
YEARLY
REPLACE WHEN
Removable Battery
Check casing & contacts
Check charging condition
Battery health check
Swollen, hot or faulty
Backpack Straps
Check straps & buckles
Inspect wear & stitching
Full inspection
Torn or loose
Cleaning Gun & Optics
Check screen & lens
Inspect dust & scratches
Optical inspection
Display or lens damage
Cooling System
Keep vents clear
Remove dust · Check fan
Fan inspection
Weak airflow or overheating
Fiber Cable
Check bends & damage
Inspect cable routing
Connector inspection
Kinks, cracks or damage
Power Adapter & Cables
Check plugs & cables
Inspect connections
Electrical inspection
Loose, hot or damaged
Suggested inspection checklist. Actual maintenance intervals and procedures should follow the manufacturer’s instructions.
BACKPACK LASER CLEANER OPERATION
From Setup to Cleaning. See It in Action.
See how the MaxWave backpack pulsed laser cleaner works—from connecting power and selecting a cleaning mode to adjusting settings at the gun head and cleaning on site.
SITE READINESS
Get Ready for On-Site Backpack Laser Cleaning
Before heading to the job site, check the battery, backpack straps, fiber cable, cooling airflow, and safety conditions. A few simple checks help make mobile laser cleaning easier to manage.
BEFORE THE JOB
Battery · Backpack · Fiber · Airflow · Safety
01 Battery & Power Preparation
Check the removable battery charge and connections before traveling. Keep a compatible AC power option ready when mains power is available.
02 Backpack & Fiber Cable Check
Inspect shoulder straps and fasteners before carrying. Keep the fiber cable protected from sharp bends, pulling, and obstacles.
03 Keep Cooling Airflow Clear
Keep air inlets and outlets unobstructed during operation. Avoid blocking ventilation with clothing, dust, or nearby objects.
04 Fume & Debris Control
Use suitable local extraction to remove fumes and particles, especially during rust, paint, or coating removal.
05 Laser-Safe Work Area
Set up a controlled cleaning area with suitable laser protection, protective eyewear, and restricted access before operation.
SUPPORT AFTER DELIVERY
Support That Keeps Mobile Cleaning Moving
From battery setup and gun-head operation to troubleshooting and spare parts, MaxWave provides practical support to keep mobile laser cleaning running smoothly.
01
SETUP GUIDANCE
Get your backpack laser cleaner ready for mobile operation with clear instructions.
Battery & AC Power Setup
Learn battery installation, charging checks, and AC power connection for supported configurations.
Backpack & Gun Operation
Guides cover safe carrying, fiber cable handling, gun-head controls, and cleaning mode selection.
02
ENGINEER SUPPORT
Practical technical assistance for different cleaning jobs and worksite conditions.
Remote Cleaning Guidance
Share workpiece photos or videos for advice on laser power, pulse settings, and scan patterns.
Battery & System Troubleshooting
Get help checking power connections, battery status, and common operating issues.
Gun-Head Control Support
Receive guidance on supported gun-head settings, screen operation, and cleaning modes.
03
ONGOING SUPPORT
Support continues beyond startup to help keep your equipment ready for the next job.
Battery & Backpack Maintenance
Guidance on battery care, shoulder straps, connectors, and cooling airflow.
Optics & Fiber Care
Maintenance advice for protective lenses, cleaning heads, and fiber cables.
Spare Parts Assistance
Help identify compatible replacement optics, cables, and battery components.
Warranty & Service
Assistance with technical service and warranty requests under the confirmed terms.
Technical Specifications
Model
Power consumption of the whole machine (W)
Repetition frequency (KHz)
About 345mm*296mm*469mm (with battery)
24.7kg (with battery)
550mm*380mm*290mm (battery carton size)
33.4kg (with battery)
Backpack Laser Cleaning Machine FAQs
Considering a portable laser cleaning solution for your industrial maintenance or restoration work? Below are the most common questions professionals ask before purchasing—covering cleaning efficiency, material safety, operating costs, and real-world on-site performance—so you can invest with confidence.
How long does the battery last?
MaxWave backpack unit does not operate on an internal battery; it connects to a standard power outlet or a generator. This ensures unlimited runtime for long workdays, with the “backpack” design providing the mobility, not the power source.
Can it remove rust from thick metal without damaging it?
How does it compare to sandblasting?
- No Consumables: No need to buy sand or media.
- No Waste: No secondary waste to clean up.
- Gentle: No damage to the substrate.
- Quiet & Clean: Much less noise and dust.
- Precision: Can clean specific areas without masking.
