MaxWave CGBD CO2 LASER ENGRAVER
Go Bigger with a 3D Dynamic Glass Tube CO2 Laser Engraver
The MaxWave MW-CGBD 3D Dynamic Glass Tube CO2 Laser Engraver combines RECI glass tube laser technology with 3D dynamic focusing for large-area non-metal processing. From denim fading and leather engraving to wood patterns and decorative cutouts, choose a marking area up to 800 × 800 mm to fit your production needs.
-
3D Dynamic Galvo: Jinhaichuang Head · FEELTEK Upgrade Option
-
Large Marking Areas: 400 × 400 · 600 × 600 · 800 × 800 mm
-
RECI CO2 Glass Tube: W2 100W · 10.64 μm · Water Cooling
-
High-Speed Scanning: Galvo Mirrors · Fast Pattern Marking
-
Flexible Worktables: Aluminum Plate · Honeycomb Table
Larger Patterns. Faster Scanning. More Ways to Create.
The MaxWave MW-CGBD combines 3D dynamic focusing, high-speed galvo scanning, and a RECI CO2 glass tube to handle large decorative patterns, detailed engraving, and suitable cutting applications on non-metal materials.
01
Large-Format Engraving
3D dynamic focusing handles larger patterns with fewer workpiece repositioning steps.
02

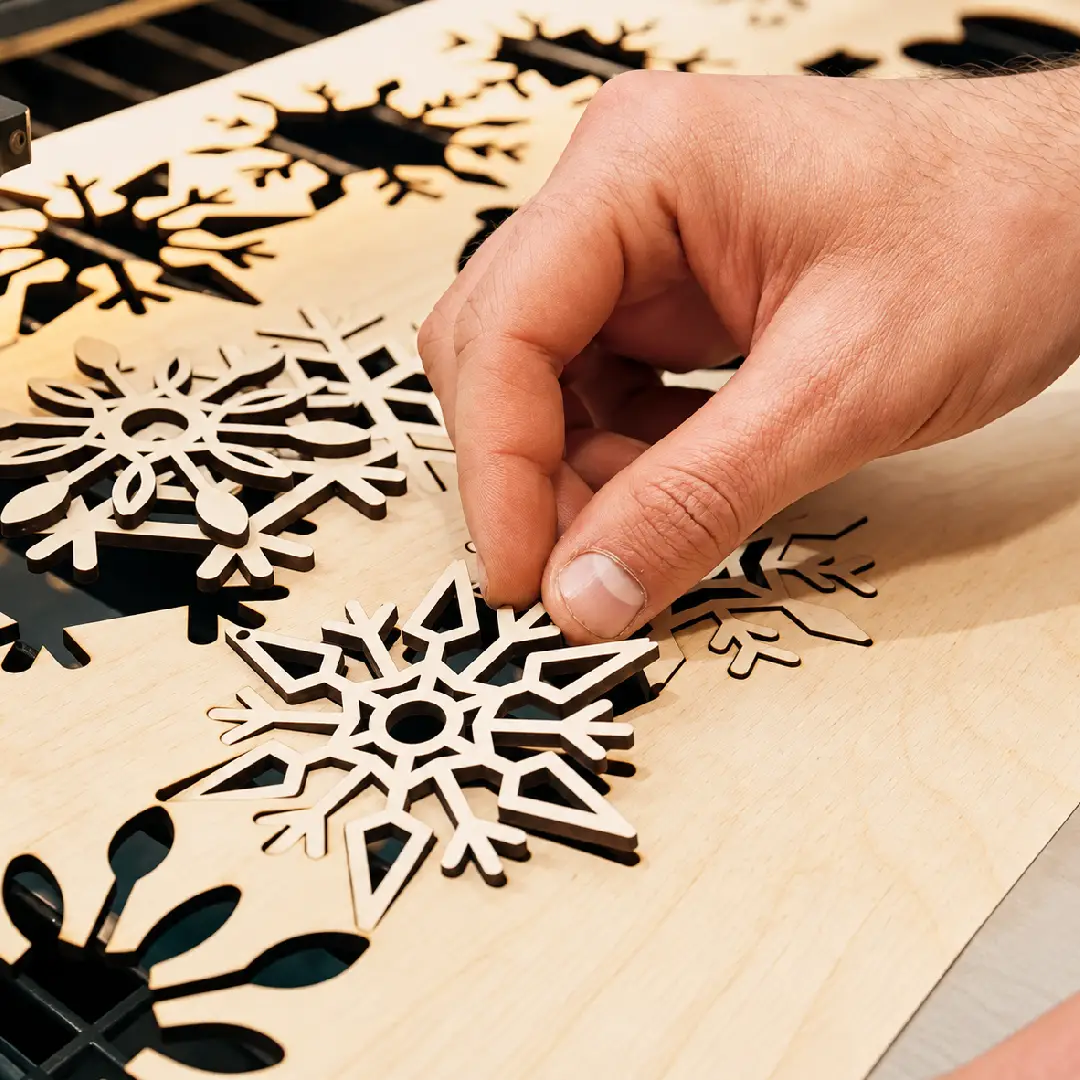

Engraving, Cutting & Cutouts
Create detailed engravings and intricate cutouts on suitable non-metal materials.
03
High-Speed Galvo Marking
High-speed galvo scanning processes surface patterns without moving an XY cutting head.
What Can You Mark, Engrave & Cut with a 3D Glass Tube CO2 Laser?
From denim fading and textile patterns to leather engraving, wood decoration, and paper cutouts, the MaxWave MW-CGBD combines 3D dynamic focusing with a RECI CO2 glass tube for large-area non-metal processing.
WHAT DO YOU WANT TO ENGRAVE?
COMMON MATERIALS / PRODUCTS
SUPPORTED
TYPICAL WORK
3D Glass Tube CO2 Laser Engraving & Cutting Examples
Explore how the MaxWave MW-CGBD handles denim fading, leather decoration, wood engraving, and intricate paper cutouts with 3D dynamic focusing and high-speed galvo scanning.
SAMPLE 01

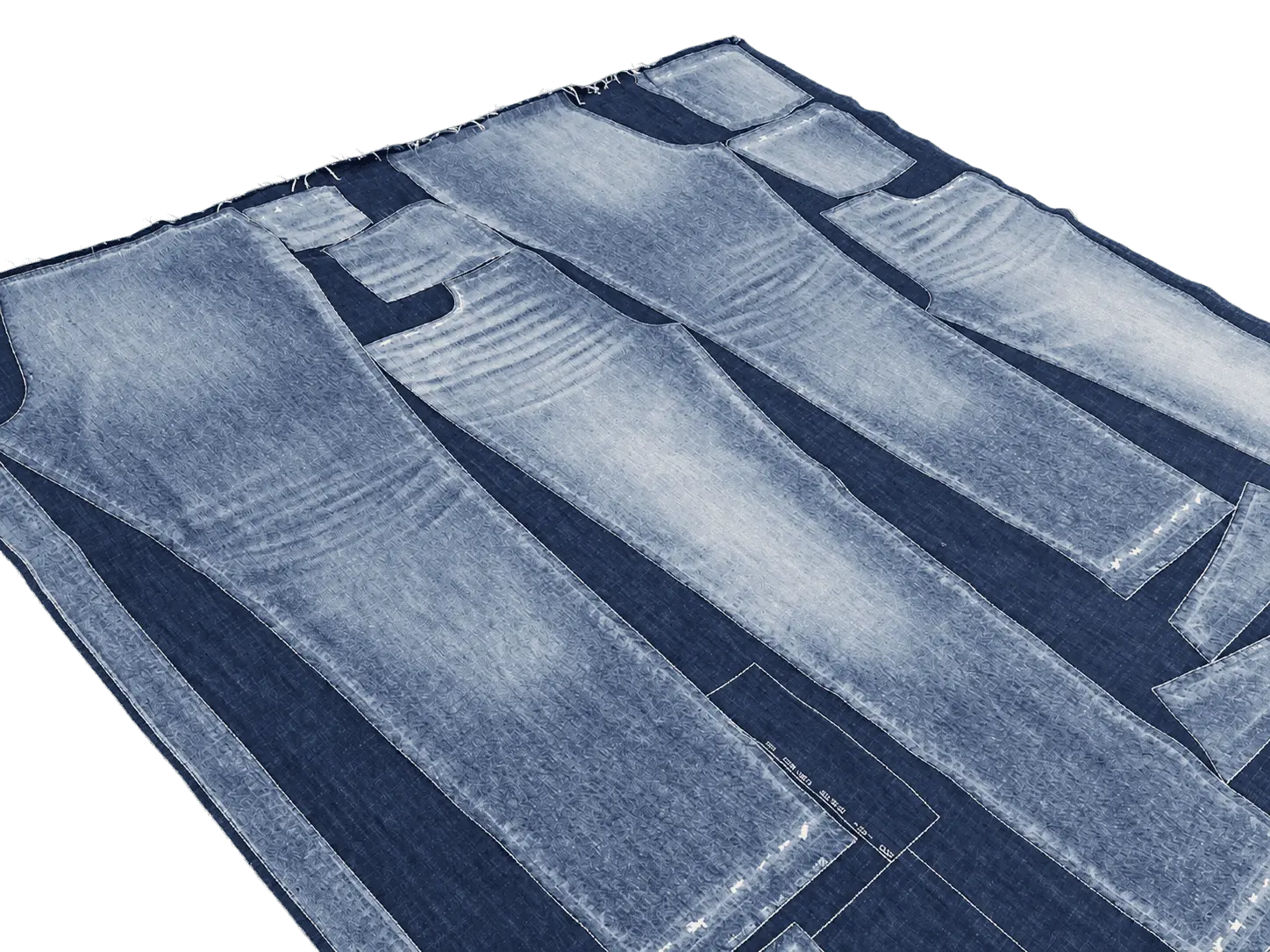

Full-Panel Denim Laser Finishing
DENIM PANELS · LARGE-AREA FADING · WASH PATTERNS
SAMPLE 02

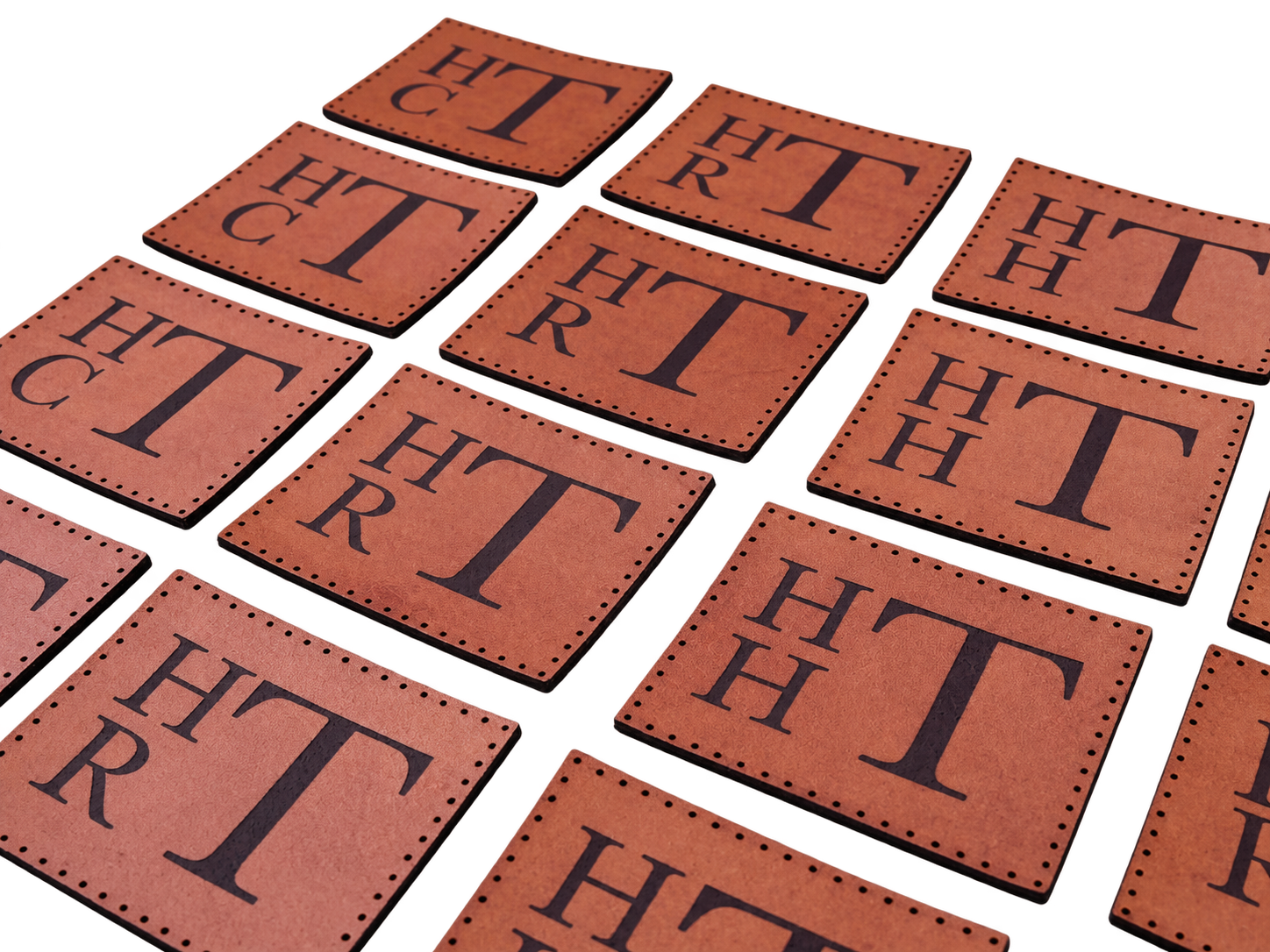

Batch Leather Label Marking
LEATHER LABELS · REPEATED LOGOS · BATCH LAYOUT
SAMPLE 03

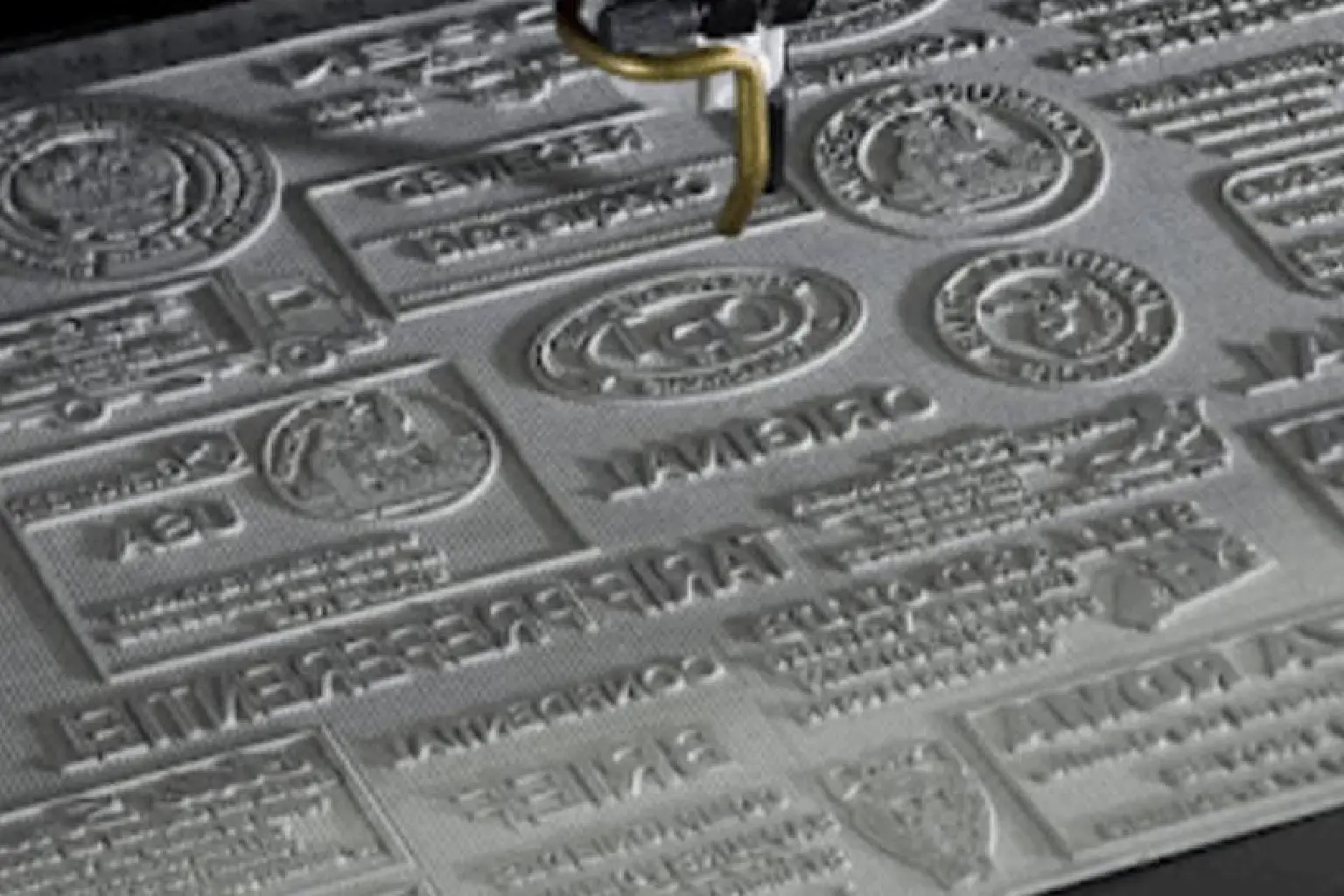

Rubber Sheet Pattern Engraving
LASER-SAFE RUBBER · SURFACE TEXTURES · PATTERNS
SAMPLE 04
Paperboard Packaging Cutouts
PAPERBOARD · WINDOW CUTOUTS · REPEATED SHAPES
Where This 3D RF CO2 Laser Engraver Fits

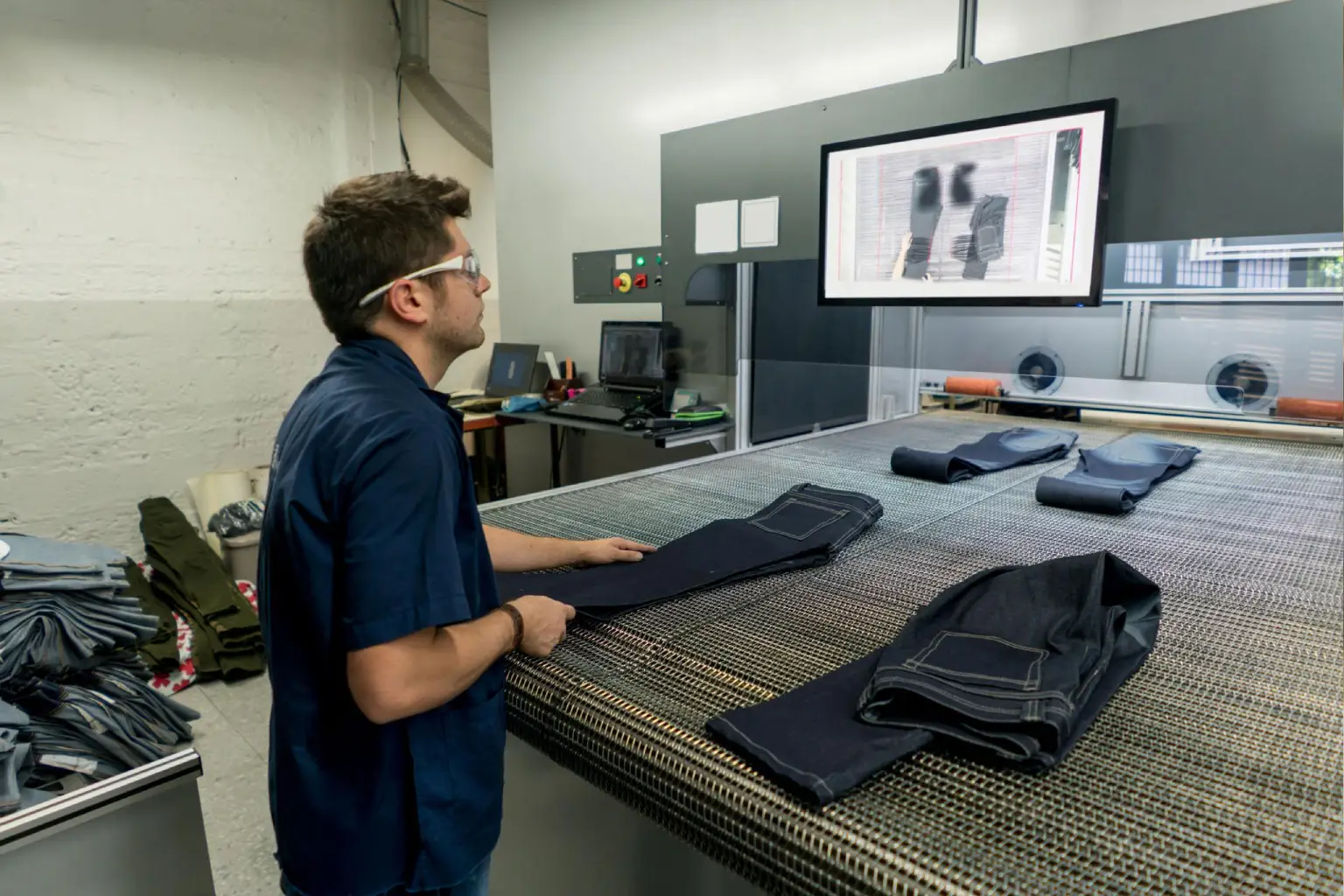

Denim & Garment Finishing Factories
Paper & Packaging Manufacturers
Footwear & Leather Component Factories
Signage & Decorative Product Manufacturers
3D GLASS TUBE CO2 LASER TECHNOLOGY
What Makes This 3D Glass Tube CO2 Laser Engraver Different?
Built with a configurable 3D dynamic galvo system, computer-based marking software, and a RECI W-series CO2 glass laser tube, the MaxWave MW-CGBD helps manufacturers handle large-area engraving and non-metal processing with greater flexibility

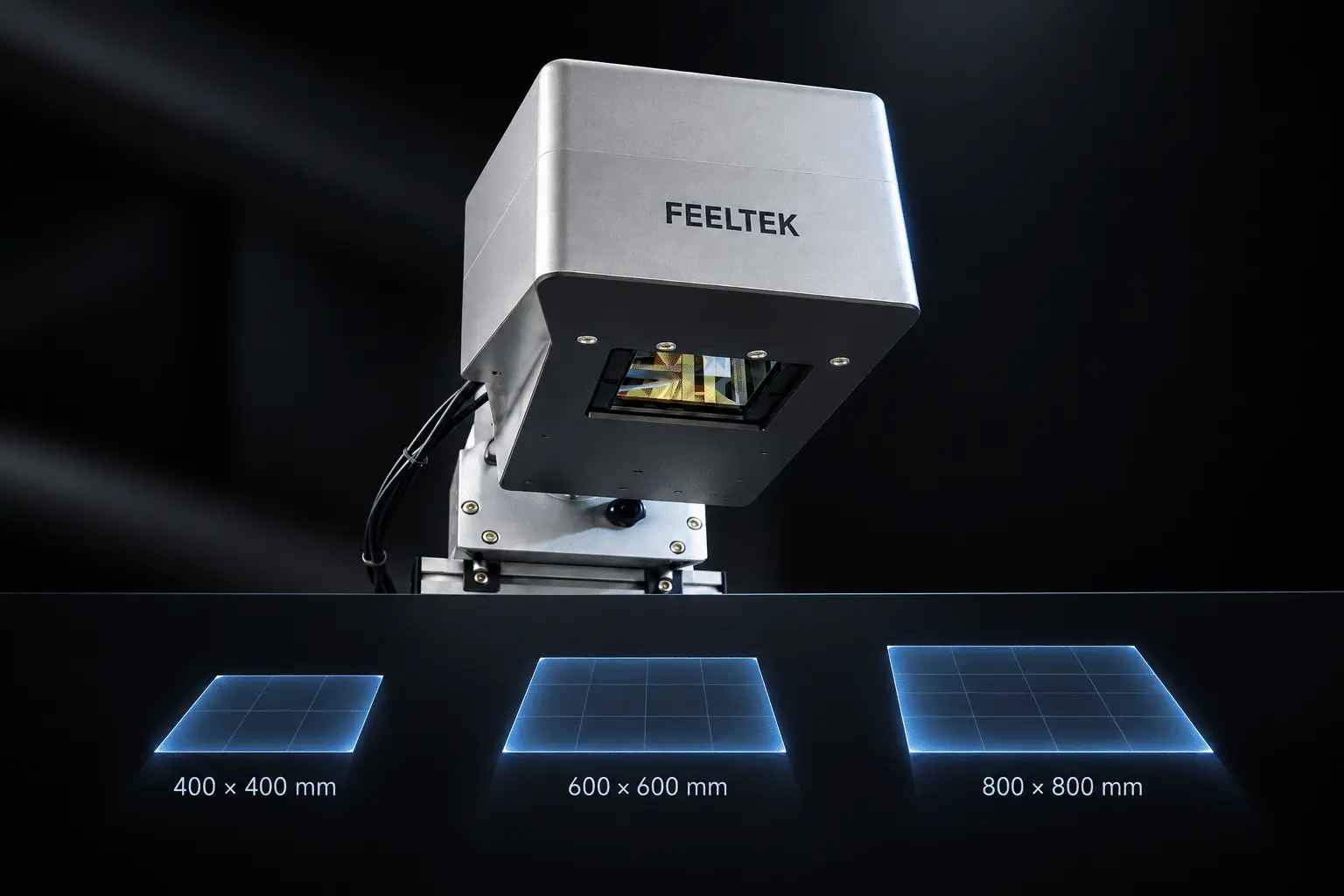

Configurable 3D Dynamic Galvo System
Equipped with a Jinhaichuang 3D dynamic galvo head and an optional FEELTEK upgrade, the MW-CGBD offers flexible optical configurations for different engraving requirements. Choose a marking area that fits your workpieces and reduces unnecessary repositioning during large-format processing.
STANDARD GALVO Jinhaichuang 3D
UPGRADE OPTION FEELTEK 3D
MARKING AREAS 400 × 400 / 600 × 600 / 800 × 800 mm

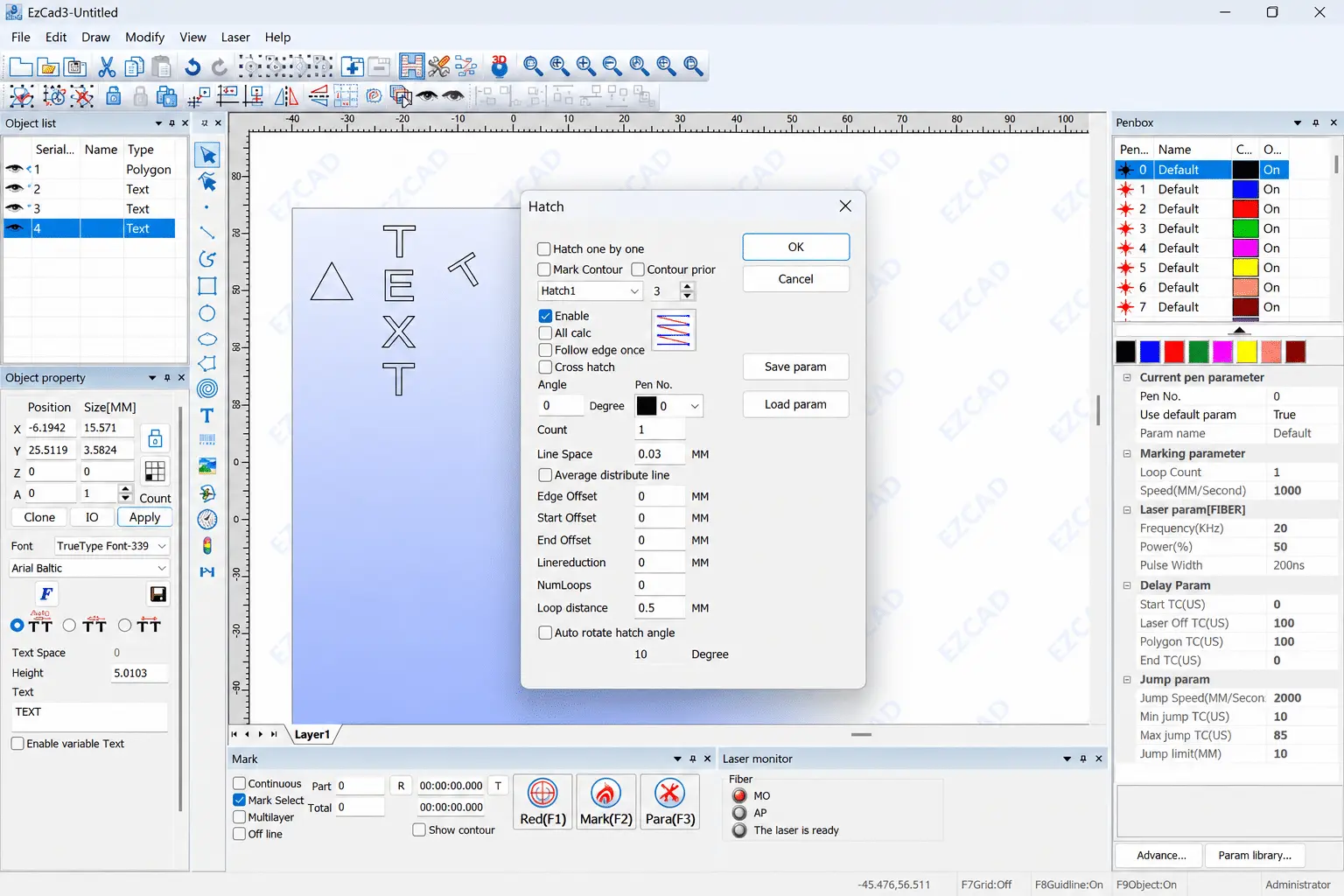

JCZ EZCAD & Independent PC Control
CONTROL SOFTWARE JCZ EZCAD
CONTROL METHOD Independent PC
KEY FUNCTIONS Artwork Import · Parameter Settings · Job Setup

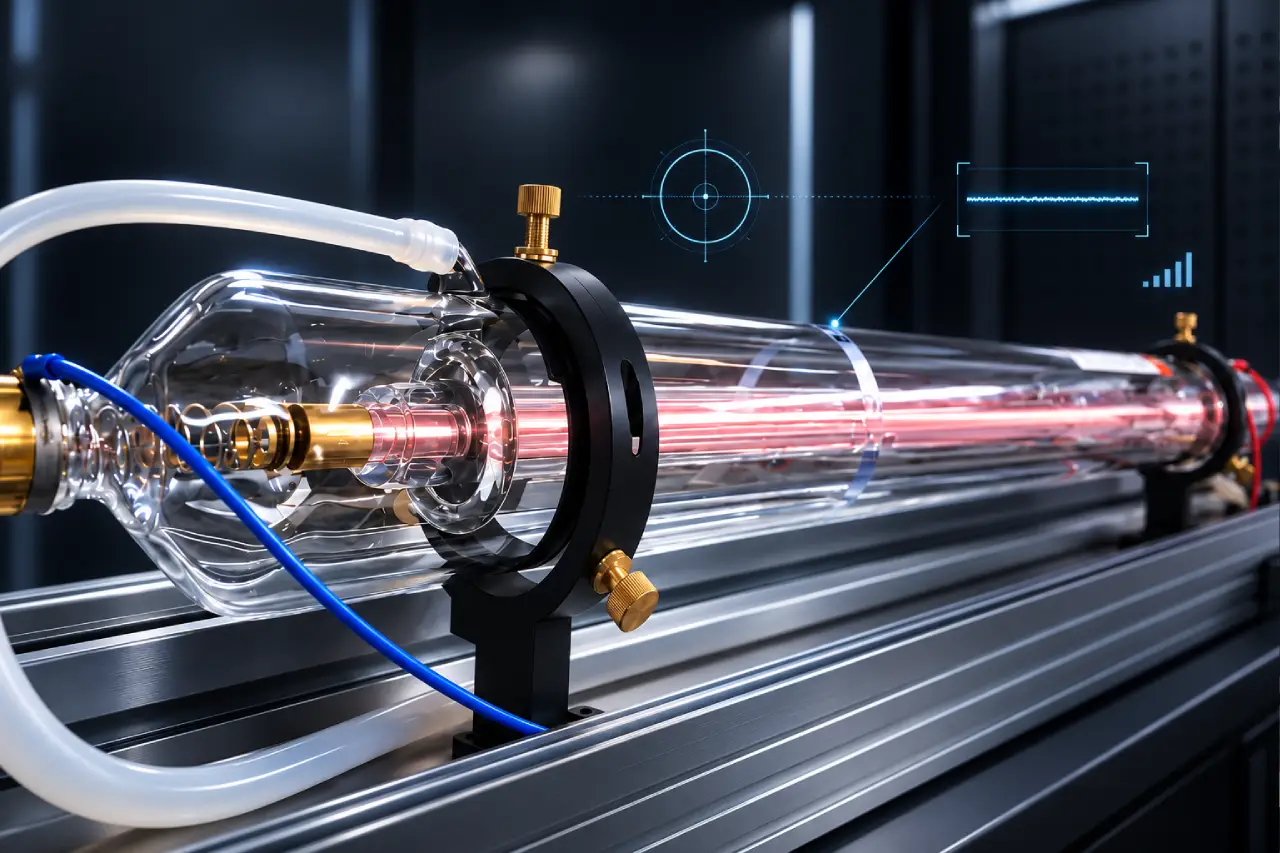

Stable RECI Laser Output
LASER SOURCE RECI W2 Glass Tube
LASER OUTPUT 100W Max.
WAVELENGTH 10.64 μm
Choose the Right Marking Area for Your Engraving Job
Compare the 400 × 400, 600 × 600, and 800 × 800 mm options based on your workpiece size, engraving patterns, and production needs.
AREA
BEST FOR
TYPICAL CLEANING JOBS
WHY CHOOSE IT
400 × 400 mm
Small & Detailed Patterns
Leather Labels · Logos · Small Fabric Panels
Ideal for compact designs and localized marking.
600 × 600 mm
Versatile Surface Processing
Denim Panels · Textile Graphics · Leather Patterns
A balanced choice for varied engraving jobs.
800 × 800 mm
Large-Format Engraving
Large Denim Patterns · Fabric Panels · Decorative Graphics
Covers larger designs with less repositioning.
GLASS TUBE CO2 LASER TECHNOLOGY COMPARISON
Traditional XY vs 2D Galvo vs 3D Dynamic Glass Tube CO2
Compare laser movement, focusing methods, and marking areas to find the right CO2 glass tube system for your engraving and production needs.
Traditional XY CO2 Laser
Moving Laser Head
The laser head travels along X and Y axes to process materials.
Fixed Focus Height
Focus is set to the material height before processing.
Best for Sheet Cutting
Suitable for contour cutting on wood, acrylic, and other compatible sheets.
MW-CGBA — 2D Glass Tube CO2
High-Speed Galvo Scanning
Galvo mirrors move the laser beam quickly across the marking area.
Fixed Focal Plane
Optimized for flat materials at a set working height.
Best for Flat-Surface Marking
Suitable for logos, text, and decorative surface patterns.
MW-CGBD — 3D Dynamic Glass Tube CO2
3D Dynamic Focus Control
Dynamic optics adjust the focal position during scanning.
Larger Marking Area Options
400 × 400 · 600 × 600 · 800 × 800 mm configurations.
Best for Large-Area Patterns
Ideal for denim finishing, textile graphics, and large decorative designs.
ENGRAVING POSSIBILITIES
Explore What You Can Make with a 3D Dynamic Glass Tube CO2 Laser Engraver
Explore large-area denim patterns, batch product marking, and decorative cutouts with the MaxWave MW-CGBD. From textiles and leather components to paper, rubber, wood, and acrylic, discover practical non-metal processing applications.
Laser-Patterned Curtains
Decorative Borders · Large Motifs · Textile Designs
Engraved Cork Desk Mats
Brand Logos · Large Graphics · Surface Engraving
Laser-Cut Felt Placemats
Geometric Cutouts · Decorative Borders · Custom Shapes
Decorative Ceramic Tiles
Surface Patterns · Custom Motifs · Tile Decoration
Frosted Glass Panels
Frosted Graphics · Logos · Decorative Marking
Custom Rubber Doormats
Brand Logos · Surface Marking · Custom Designs

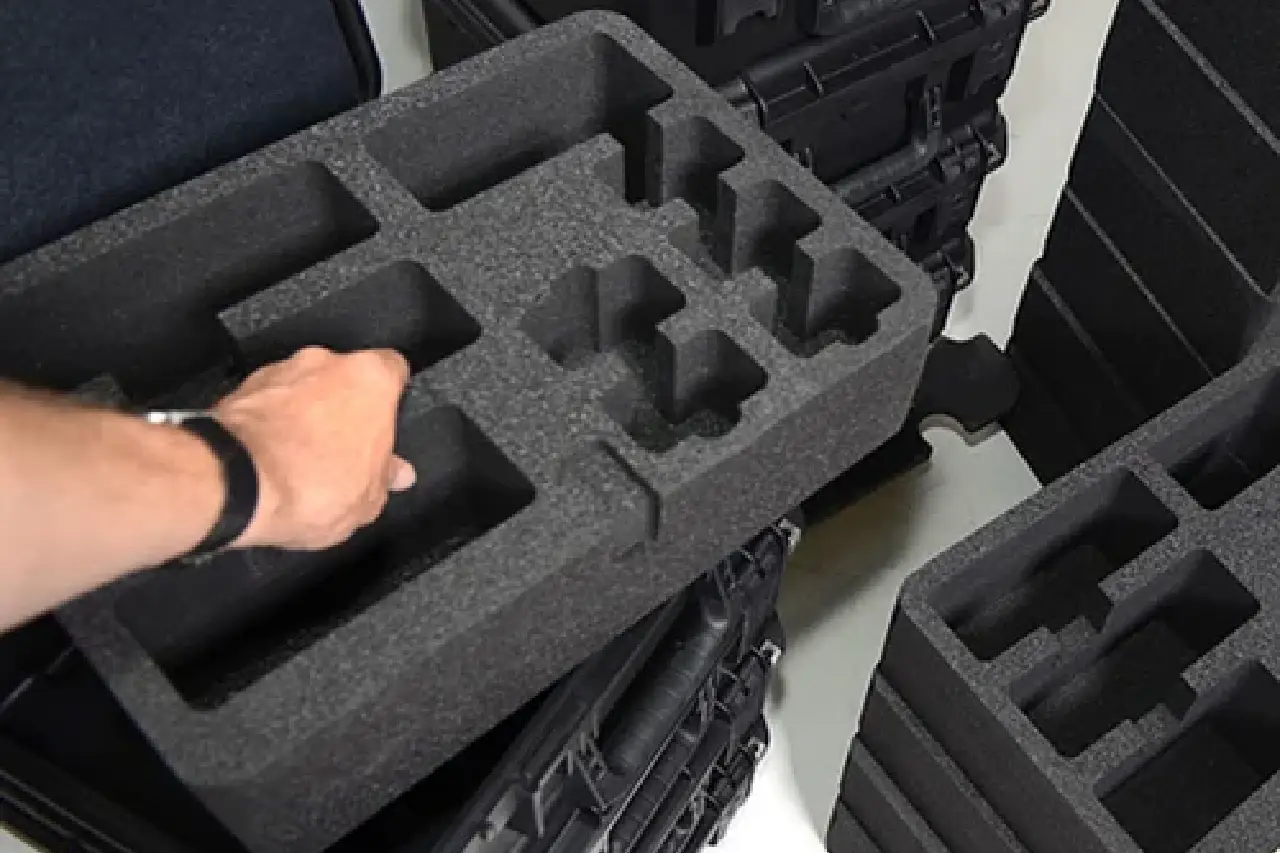

Laser-Cut EVA Foam Inserts
Custom Shapes · Foam Cutouts · Packaging Inserts

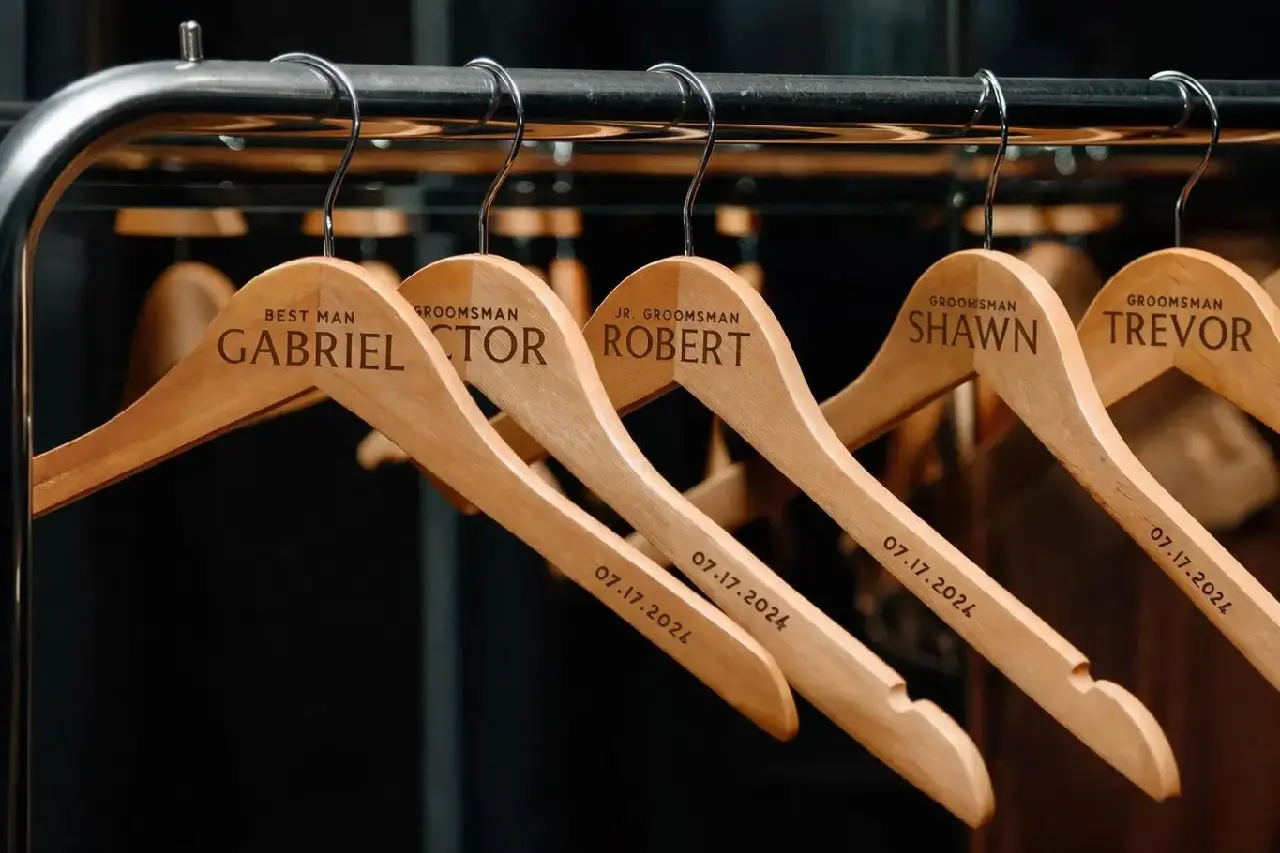

Engraved Wooden Clothes Hangers
Brand Names · Repeated Logos · Custom Text
Acrylic Menu Boards
Frosted Text · Custom Icons · Surface Graphics
Laser-Cut Paper Stencils
Repeated Patterns · Design Templates · Custom Cutouts
FREE SAMPLE TEST
Test Your Material. See the Results Before You Buy.
Send us your material details, artwork, and desired marking area. We’ll test suitable settings with the MW-CGBD 3D Glass Tube CO2 Laser Engraver, record the processing results, and recommend the right configuration for your project.
01
Share Your Project Details
Material · Thickness · Artwork · Pattern Size
02
Choose the Right Test Setup
3D Galvo Head · Marking Area · Laser Settings
03
Process & Record the Sample
Marking · Engraving · Cutouts · Test Video
04
Review Before Ordering
Sample Results · Processing Details · Recommended Setup
WHAT YOU’LL RECEIVE
A Clear Result Before You Order
Engraved Sample
Review the engraving details, surface finish, or cut edges on a tested sample.
Test Video
Watch the actual laser process and examine the finished result.
Recommended Setup
Get a suggested marking area and 3D galvo setup based on your project requirements.
PACKAGE & CONFIGURATION
Know What’s Included with Your 3D Glass Tube CO2 Laser Engraver
Explore the RECI CO2 glass tube, 3D dynamic galvo head, water cooling system, and marking software, along with maintenance essentials and available configuration options.

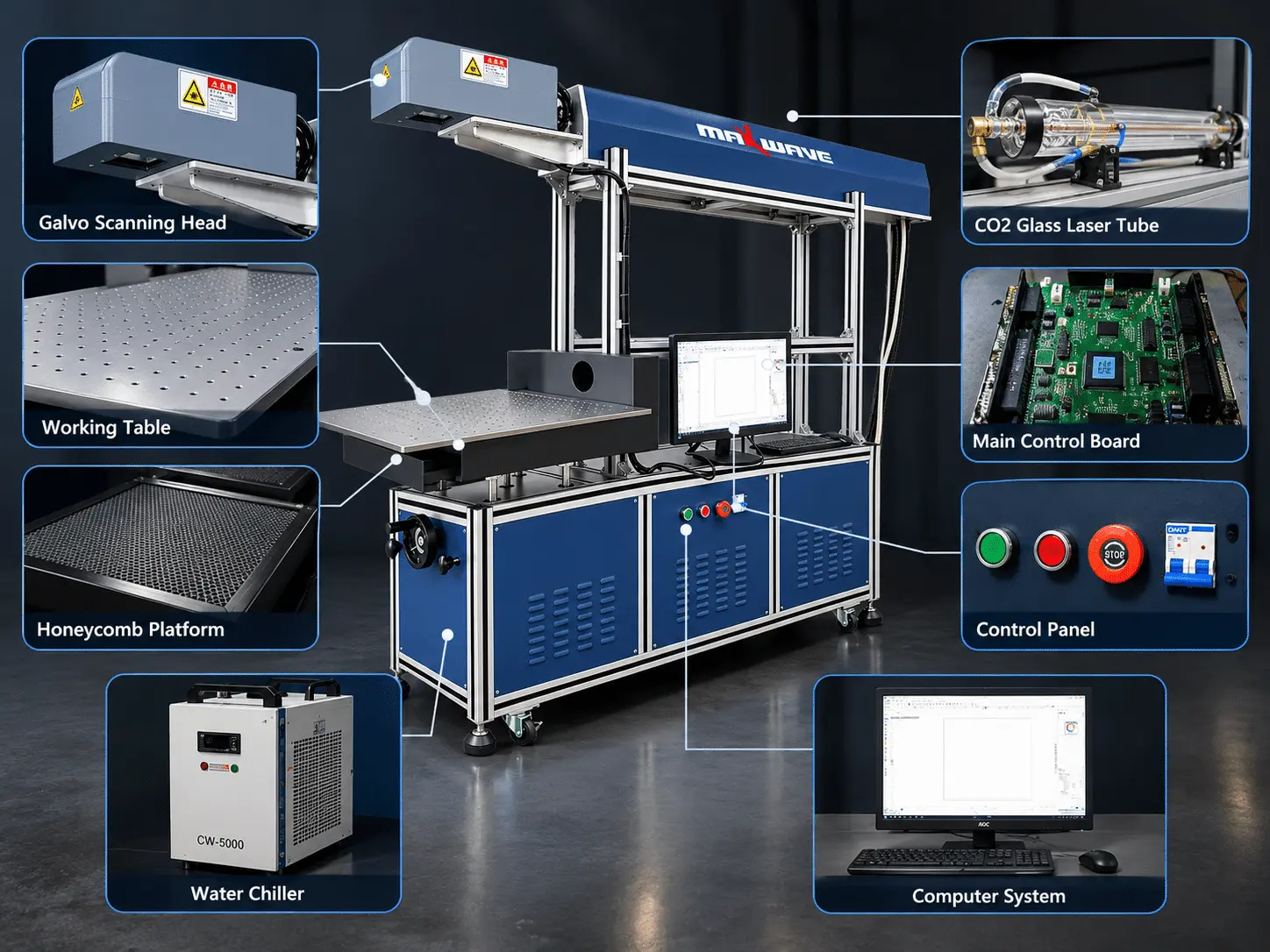

01 Core Machine Configuration
MW-CGBD 3D Glass Tube CO2 Laser Engraver
Industrial workstation for large-area marking, engraving, and suitable cutting applications.
RECI CO2 Glass Laser Tube
100W W2 glass tube laser source for processing compatible non-metal materials.
3D Dynamic Galvo Head
Jinhaichuang 3D focusing and scanning system for large-area pattern processing.
CW5200 Water Chiller
Circulating water cooling helps maintain suitable laser tube operating temperatures.
Dynamic Marking Software
Supports artwork import, processing parameters, and laser operation control.
Industrial Worktable
Supports materials during marking, engraving, and cutting operations.
02 Routine Care & Spare Parts
CO2 Glass Tube Maintenance
Check laser tube condition and replace it when necessary according to service guidance.
Optical Mirrors & Lenses
Inspect and clean optical components using approved maintenance procedures.
Water Cooling Maintenance
Check coolant condition, water flow, connections, and cooling performance.
Replacement Parts
Compatible glass tubes, mirrors, lenses, and other service parts can be supplied when required.
03 Optional Configuration
Marking Area Selection
Choose from 400 × 400, 600 × 600, or 800 × 800 mm processing areas.
FEELTEK 3D Galvo Upgrade
Upgrade the 3D dynamic focusing head for specific processing requirements.
Worktable Options
Choose an aluminum plate or honeycomb worktable based on your application.
Fume Extraction & Fixtures
Discuss suitable smoke extraction and custom workpiece positioning solutions.
MAINTENANCE & CONSUMABLES
Keep Your Glass Tube CO2 Laser Engraver Ready for Production
Routine care focuses on the CO2 glass tube, optical components, 3D galvo head, and water cooling system. Regular inspections help maintain engraving quality and reduce unexpected production interruptions.
ITEM
AFTER USE
WEEKLY
SERVICE / REPLACE WHEN
RECI CO2 Glass Laser Tube
Check for unusual power loss or cooling alarms.
Inspect the tube exterior and water connections with power off.
Cracked, leaking, or significant power loss.
Optical Mirrors & 3D Galvo Head
Check for dust or residue.
Inspect accessible optics and scanning performance.
Damaged optics, focusing errors, or scanning faults.
Aluminum / Honeycomb Worktable
Remove scraps and engraving debris.
Check surface condition and stability.
Warped, loose, or damaged.
CW5200 Water Chiller
Check temperature and cooling alarms.
Inspect coolant level, water flow, and hoses.
Low flow, cooling faults, or coolant replacement due.
Fume Extraction System
Remove collected residue safely.
Inspect filters and extraction ducts.
Clogged filters or weak airflow.
Power & Control Connections
Check for visible cable damage.
Inspect accessible cables and connectors with power isolated.
Loose, overheated, or damaged.
Maintenance intervals depend on operating conditions and the manufacturer’s instructions. Glass tube replacement and optical servicing should follow approved procedures.
MW-CGBD GLASS TUBE CO2 LASER OPERATION
See Large-Area 3D CO2 Laser Engraving in Action
Watch the MaxWave MW-CGBD 3D Dynamic Glass Tube CO2 Laser Engraver at work—from artwork setup and material positioning to high-speed galvo scanning and finished patterns on denim, textiles, and other compatible non-metal materials.
3D GLASS TUBE CO2 WORKSPACE SETUP
Prepare Your Workshop for the MW-CGBD CO2 Laser Engraver
Before installation, prepare suitable power, enough space for large-format materials, reliable water cooling, and effective fume extraction. A properly prepared workspace helps keep glass tube CO2 laser engraving safe and reliable.
BEFORE SHIPMENT
Power · Worktable Space · Water Cooling · Fume Extraction · Laser Safety
01 Power Supply for the Glass Tube System
Provide a stable, properly grounded power supply for the RECI glass laser tube, 3D galvo system, and water chiller. Confirm electrical requirements before installation.
02 Space for Large-Format Processing
Prepare a level floor with enough space for the machine, worktable, and chiller. Allow easy loading and positioning of large denim, leather, or textile materials.
03 Fume Extraction for Non-Metal Processing
Install suitable local extraction to remove smoke and airborne particles produced when processing denim, leather, wood, paper, and other compatible materials.
04 CW5200 Water Cooling Setup
Connect the CW5200 water chiller and check coolant level, water flow, and temperature control before operating the CO2 glass laser tube.
05 Laser Safety & Fire Prevention
Establish a controlled laser work area with suitable beam protection, wavelength-rated eyewear, and fire safety measures. Never leave combustible materials unattended during processing.
3D GLASS TUBE CO2 LASER ENGRAVER SUPPORT
Support for Your MW-CGBD 3D CO2 Laser Engraver After Delivery
From RECI glass tube setup and water cooling to 3D galvo adjustments, engraving parameters, and replacement parts, MaxWave provides technical guidance to keep your production running smoothly.
01
SETUP GUIDANCE
Get Your Glass Tube Laser System Ready for Production
Machine & Cooling System Setup
Guidance for connecting the RECI glass tube system, 3D galvo head, and water chiller before operation.
Software & Operator Training
Learn artwork import, marking area setup, laser parameters, and basic machine operation.
02
ENGINEER SUPPORT
Technical Help for Large-Area Marking & Engraving
3D Galvo & Marking Area Support
Get guidance on scan field calibration, dynamic focusing, and marking area adjustments.
Material Processing Guidance
Receive parameter advice for denim, leather, textiles, paper, and other compatible materials.
Glass Tube Troubleshooting
Get help diagnosing weak laser output, marking inconsistencies, and cooling-related issues.
Remote Software Support
Share photos or videos for assistance with software settings, artwork import, and system operation.
03
ONGOING SUPPORT
Keep Your Glass Tube Laser Ready for the Next Job
Glass Tube Replacement Assistance
Get help identifying compatible RECI glass tubes and arranging replacement support.
Optics & Water Cooling Care
Receive maintenance guidance for mirrors, lenses, water circulation, and the chiller.
Spare Parts Assistance
Find compatible optical parts, laser components, and other replacement accessories.
Warranty & Follow-Up
Receive service guidance, maintenance recommendations, and warranty assistance under the confirmed terms.
Technical Specifications
Model
MW-CGBD 600×600-800×800
Laser type
CO2 glass tube
wavelength
10.64µm
Common format range
300*300mm
400*400mm
600*600mm
800*800mm
custom1500*1500mm
workbench
Aluminum plate or honeycomb table
Optical Path Principle
The reflector is combined with the beamexpander and focusing mirror, and the laser is emitted through the galvanometer.
Movement principle
The inner mirror of the galvanometer rotate:at high speed
Control System
JCZ EZCAD+Independent computer operation
Maximum speed
0- 10000mm/s
Minimum spot (diameter)
300 format ≤0.4mm
600 format ≤0.5mm
800 format ≤0.6mm
Warranty
2 Years
MaxWave MW-CGBD 3D Glass Tube CO2 Laser Engraver FAQs
Considering a 3D glass tube CO2 laser engraver for your production? Learn how the MW-CGBD compares with RF laser systems, which marking area fits your workpieces, and what to expect from engraving and cutting different materials.
How Is a Glass Tube CO2 Laser Different from an RF CO2 Laser?
The MW-CGBD uses a water-cooled RECI CO2 glass tube, while RF models use metal RF laser sources. Both support non-metal engraving, but beam characteristics, maintenance requirements, and processing performance differ. The right choice depends on your application and budget.
Which Marking Area Should I Choose: 400, 600, or 800 mm?
Choose 400 × 400 mm for smaller designs, 600 × 600 mm for medium-sized panels, or 800 × 800 mm for larger patterns on denim and textiles. The best option depends on your workpiece dimensions and required engraving detail.
Can the MW-CGBD Cut Materials as Well as Engrave?
Yes. The MW-CGBD supports marking, engraving, and cutting on suitable non-metal materials, including selected paper, fabric, and leather. Cutting performance depends on material thickness and laser settings. For thicker sheets or vertical cutting edges, an XY CO2 laser cutter may be more suitable.
Bring Large-Format CO2 Engraving into Your Production
From denim finishing and textile graphics to leather marking and intricate paper cutouts, the MaxWave MW-CGBD 3D Dynamic Glass Tube CO2 Laser Engraver combines RECI glass tube technology with 3D dynamic focusing. Choose from 400 × 400, 600 × 600, and 800 × 800 mm marking areas to match your materials, designs, and production needs.
Ready to Find the Right MW-CGBD Configuration?
Find the Right Laser Machine for Your Needs
Tell us what you want to make — we’ll recommend the best machine for you.
- Not sure which machine to choose? We’ll help you
- Easy to use — even for beginners
- Fast reply within 12–24 hours
